Bryant Evaporator coil FE5BNBD60L*+UI

Schedule Service Check Availability
Bryant Bryant AHRI Indoor - FE5B Evaporator coil Repair, maintenance, and replacement planning

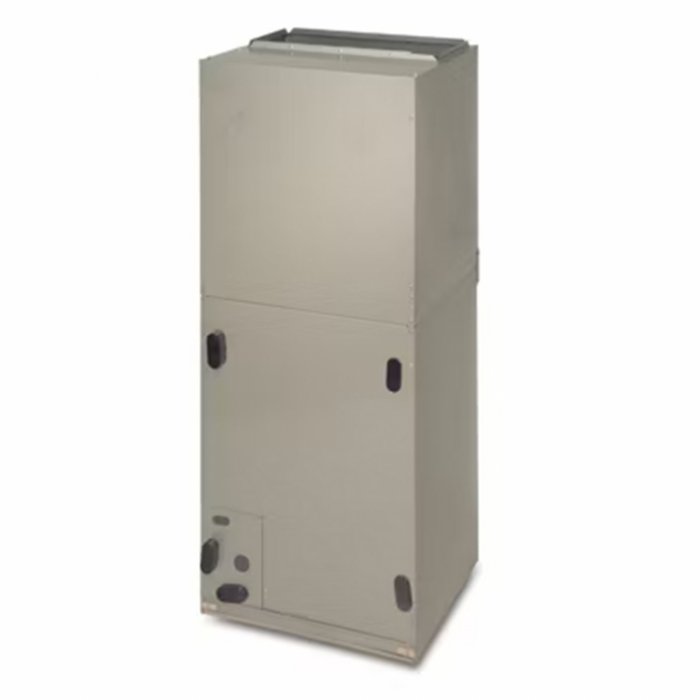

Bryant FE5BNBD60L*+UI product image

Technical Specifications

Product Specs

  • AHRI unit role: Indoor
  • AHRI model/pattern: FE5BNBD60L*+UI
  • AHRI records represented: 7
  • AHRI equipment type: Central HP
  • AHRI tonnage: 4.291666666666667
  • AHRI refrigerant: R-454B
  • Verified catalog model: FE5BNBD60L00
  • Verified product family: FE5B
  • Verified catalog brand: Carrier, Bryant
  • Catalog Model: FE5BNBD60L00
  • Manufacturer Number: FE5BNBD60L00
  • Catalog SKU: 1604089257073633
  • Catalog Brand: Carrier, Bryant
  • Product Family: FE5B
  • Tonnage: 2.5-5
  • Refrigerant: R-454B
  • Air Flow Direction: Multi-Position
  • Approvals: UL Listed
  • Blower Motor HP: 3/4
  • Blower Motor RPM: 1,050
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 13 3/4
  • Blower Wheel Width: 12 3/4
  • Brand: Carrier, Bryant
  • CFM: 1,050-1,750
  • Cabinet Width: 24.6875
  • Color: Taupe
  • Cooling Capacity: 36,000-60,000
  • Cooling Rated Capacity Btu/h: 60000
  • Country Of Origin: MEX
  • Cycle/Hertz: 60 Hz
  • Drain Connection Size: 3/4"
  • Electric Heat Range [kW]: 5-30
  • Energy Star Rated: NO
  • Evaporator Coil Fins Per Inch (FPI): 14.5
  • Filter Size: 20" x 24
  • Height: 59.1
  • Includes Filter Rack: YES
  • Length: 22
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Maximum Overcurrent Protection (MOCP): 15
  • Metering Device: TXV/TEV - Thermostatic Expansion Valve
  • OPT Code: 1PFE5BNBD60L00
  • Phase: Single
  • Prop 65: YES
  • Stage: 1
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 7/8"
  • Tier: Infinity
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 207
  • Width: 24.6

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 215587918

AHRI 215587918 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 291VAN054**AA* and indoor unit FE5BNBD60L*+UI.
Eligible Central HP <5.4 tons

AHRI 215662882

AHRI 215662882 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN060**AA* and indoor unit FE5BNBD60L*+UI.
Eligible Central HP <5.4 tons

AHRI 215670617

AHRI 215670617 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN036**AA* and indoor unit FE5BNBD60L*+UI.
Eligible Central HP <5.4 tons

AHRI 215675344

AHRI 215675344 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN048**AA* and indoor unit FE5BNBD60L*+UI.
Eligible Central HP <5.4 tons

AHRI 215931487

AHRI 215931487 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN060**AA* and indoor unit FE5BNBD60L*+UI.
Eligible Central HP <5.4 tons

AHRI 215931505

AHRI 215931505 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN048**AA* and indoor unit FE5BNBD60L*+UI.
Eligible Central HP <5.4 tons

AHRI 215933965

AHRI 215933965 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit FE5BNBD60L*+UI.

Service planning

How GreenFlow handles FE5BNBD60L*+UI requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
