Carrier Gas furnace 58TP*B090V17**16

Schedule Service Check Availability
Carrier Carrier AHRI Furnace - 58TP Gas furnace Repair, maintenance, and replacement planning

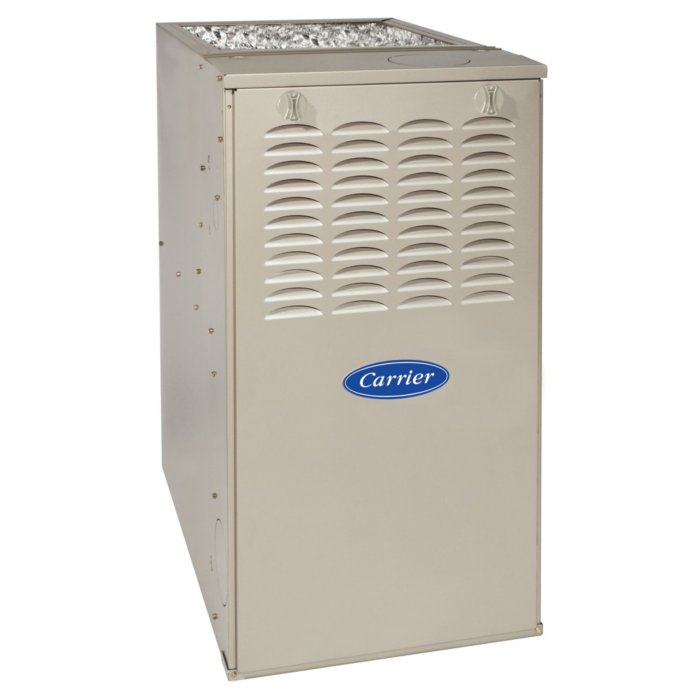

Carrier 58TP*B090V17**16 product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: 58TP*B090V17**16
  • AHRI records represented: 175
  • AHRI equipment type: Central HP
  • AHRI tonnage: 2.966666666666667
  • AHRI refrigerant: R-454B
  • Verified catalog model: 58TP0B090V17--16
  • Verified product family: 58TP
  • Verified catalog brand: Carrier
  • Verified AHRI-to-catalog mapping: 58TP*B090V17**16 -> 58TP0B090V17--16
  • Verified model family: 58TP
  • Equipment type: Gas furnace
  • Application: matched furnace for split-system air conditioner or heat pump combinations
  • Catalog Model: 58TP0B090V17--16
  • Manufacturer Number: 58TP0B090V17--16
  • Catalog SKU: 1604089213763415
  • Catalog Brand: Carrier
  • Product Family: 58TP
  • AFUE: 80
  • Air Flow Direction: Multi-Position
  • BTU Input: 58,000-88,000
  • BTU Output: 47,000-71,000
  • Blower Motor HP: 1/2
  • Blower Motor RPM: 1,200
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 10"
  • Blower Wheel Width: 10"
  • Brand: Carrier
  • CFM: 1,600
  • CFM Heating: 1,005-1,380
  • Cabinet Width: 17.5
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 50/60 Hz
  • Energy Star Rated: YES
  • FER Compliant: NO
  • Filter Size: 16" X 25" X 3/4"
  • Fuel Type: Natural Gas
  • Full Load Amps: 6.7
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 33.3333
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29
  • Maximum Overcurrent Protection (MOCP): 15
  • OPT Code: 1P58TP0B090V17--16
  • Phase: Single
  • Prop 65: YES
  • Stages Heating: 2
  • Tier: Performance
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 136
  • Width: 17.5

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217382207

AHRI 217382207 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217382375

AHRI 217382375 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4821AM*.
Eligible Central HP <5.4 tons

AHRI 217382436

AHRI 217382436 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Eligible Central HP <5.4 tons

AHRI 217382511

AHRI 217382511 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4221AM*.
Eligible Central HP <5.4 tons

AHRI 217382582

AHRI 217382582 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**3721AM*.
Eligible Central HP <5.4 tons

AHRI 217382653

AHRI 217382653 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**3717AM*.
Eligible Central HP <5.4 tons

AHRI 217382700

AHRI 217382700 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**3617AM*.
Eligible Central HP <5.4 tons

AHRI 217382803

AHRI 217382803 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217382979

AHRI 217382979 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217383268

AHRI 217383268 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Loading more

Service planning

How GreenFlow handles 58TP*B090V17**16 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
