Carrier Gas furnace 59SP6B080V21**20

Schedule Service Check Availability
Carrier Carrier AHRI Furnace - 59SP6B Gas furnace Repair, maintenance, and replacement planning

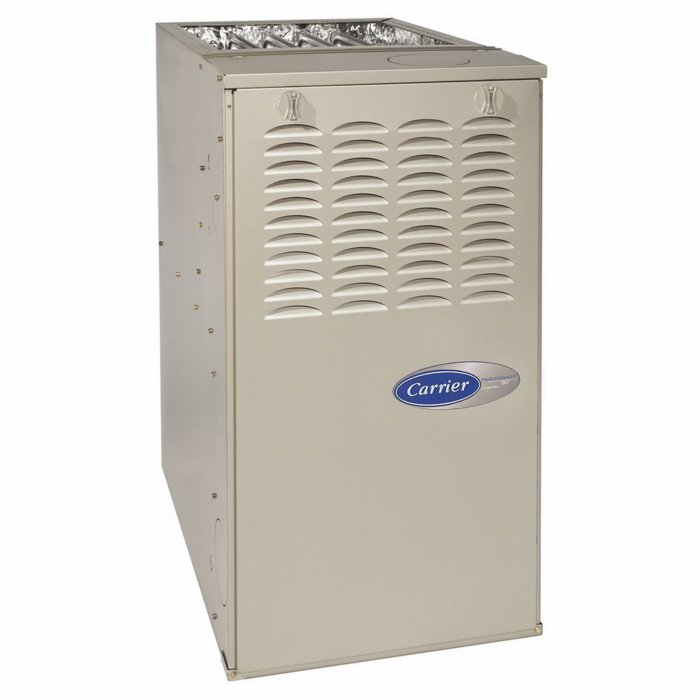

Carrier 59SP6B080V21**20 product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: 59SP6B080V21**20
  • AHRI records represented: 125
  • AHRI equipment type: Central HP
  • AHRI tonnage: 3
  • AHRI refrigerant: R-454B
  • Verified catalog model: 59SP6B080V21--20
  • Verified product family: 59SP6B
  • Verified catalog brand: Carrier
  • Catalog Model: 59SP6B080V21--20
  • Manufacturer Number: 59SP6B080V21--20
  • Catalog SKU: 1604089213763473
  • Catalog Brand: Carrier
  • Product Family: 59SP6B
  • AFUE: 95-97
  • Air Flow Direction: Multi-Position
  • BTU Input: 80,000
  • BTU Output: 78,000
  • Blower Motor HP: 1
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 10"
  • Brand: Carrier
  • CFM: 2,000
  • CFM Heating: 1,315
  • Cabinet Width: 21
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: YES
  • FER Compliant: NO
  • Fuel Type: Natural Gas
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 35
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29.5
  • Maximum Overcurrent Protection (MOCP): 20
  • OPT Code: 1P59SP6B080V21--20
  • Phase: Single
  • Prop 65: YES
  • Stages Heating: 1
  • Tier: Performance
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 161
  • Width: 21

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217382222

AHRI 217382222 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217382315

AHRI 217382315 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217382383

AHRI 217382383 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4821AM*.
Eligible Central HP <5.4 tons

AHRI 217382447

AHRI 217382447 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Eligible Central HP <5.4 tons

AHRI 217382523

AHRI 217382523 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4221AM*.
Eligible Central HP <5.4 tons

AHRI 217382593

AHRI 217382593 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**3721AM*.
Eligible Central HP <5.4 tons

AHRI 217382856

AHRI 217382856 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217383031

AHRI 217383031 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217383304

AHRI 217383304 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Eligible Central HP <5.4 tons

AHRI 217383419

AHRI 217383419 identifies a Mass Save qualified Central HP <5.4 tons from CARRIER with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CAA**4221AM*.
Loading more

Service planning

How GreenFlow handles 59SP6B080V21**20 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
