Payne Evaporator coil 45MULAQ24XAX

Schedule Service Check Availability
Payne Payne AHRI Indoor - 45MULA Evaporator coil Repair, maintenance, and replacement planning

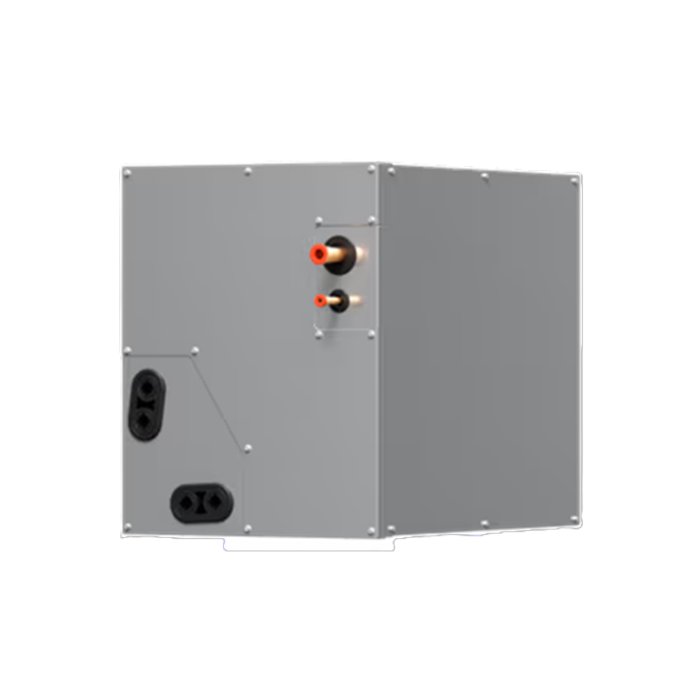

Payne 45MULAQ24XAX product image

Technical Specifications

Product Specs

  • AHRI unit role: Indoor
  • AHRI model/pattern: 45MULAQ24XAX
  • AHRI records represented: 3
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.5
  • AHRI refrigerant: R-454B
  • Verified catalog model: 45MULAQ24XAX
  • Verified product family: 45MULA
  • Verified catalog brand: Carrier, Bryant, Payne
  • Catalog Model: 45MULAQ24XAX
  • Manufacturer Number: 45MULAQ24XAX
  • Catalog SKU: 1604089264517110
  • Catalog Brand: Carrier, Bryant, Payne
  • Product Family: 45MULA
  • Tonnage: 2
  • Refrigerant: R-454B
  • Air Flow Direction: Multi-Position
  • Brand: Carrier, Bryant, Payne
  • CFM: 525-800
  • Cabinet Width: 14.5
  • Cased: YES
  • Coil Fin Material: Aluminum
  • Coil Pipe Material: Aluminum
  • Coil Shape Designation: A-Coil
  • Coil Type: Cased
  • Cooling Capacity: 24,000
  • Cooling Rated Capacity Btu/h: 24000
  • Country Of Origin: CHN
  • Drain Connection Quantity: 2
  • Drain Connection Size: 3/4"
  • Height: 17.99
  • Length: 21
  • Liquid Line Fitting Type: Sweat or Braze
  • Metering Device: TXV/TEV - Thermostatic Expansion Valve
  • OPT Code: 1P45MULAQ24XAX
  • Prop 65: YES
  • Suction Line Fitting Type: Sweat or Braze
  • Tier: Standard
  • Weight: 49.6
  • Width: 14.49

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217456352

AHRI 217456352 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE with outdoor unit 37MUHAQ18AA3 and indoor unit 45MULAQ24XAX.
Eligible Central HP <5.4 tons

AHRI 217456354

AHRI 217456354 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE with outdoor unit 37MUHAQ24AA3 and indoor unit 45MULAQ24XAX.
Eligible Central HP <5.4 tons

AHRI 217456368

AHRI 217456368 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE with outdoor unit 37MURAQ24AA3 and indoor unit 45MULAQ24XAX.

Service planning

How GreenFlow handles 45MULAQ24XAX requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
