ACiQ Heat pump condensing unit H5H3V36*K*AAA*

Schedule Service Check Availability
ACiQ ACiQ AHRI Outdoor - N5H9V Deluxe 23 VS Heat Pump Heat pump condensing unit Repair, maintenance, and replacement planning

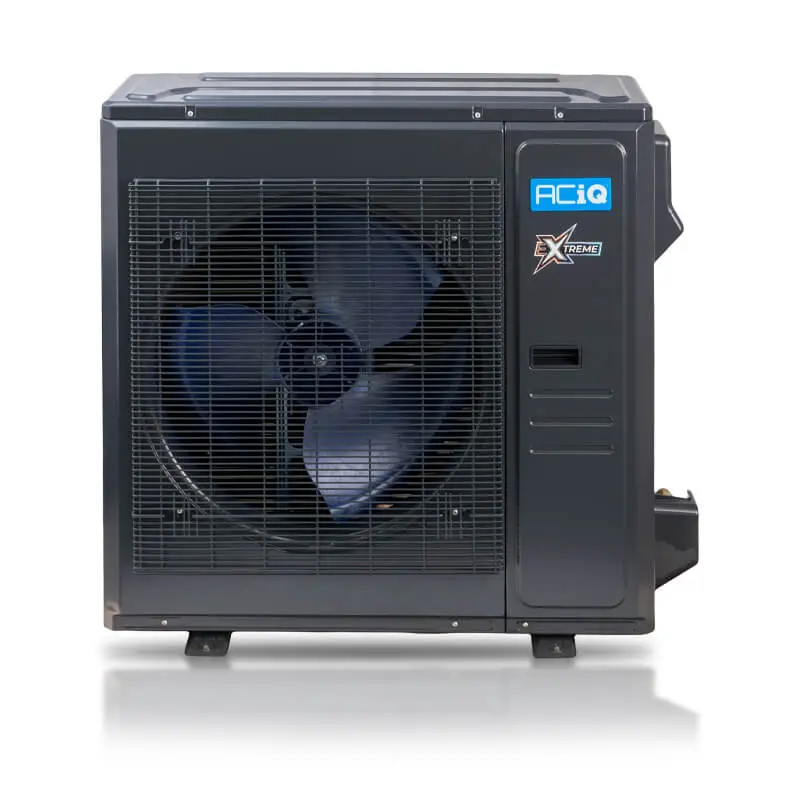

ACiQ H5H3V36*K*AAA* product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: H5H3V36*K*AAA*
  • AHRI records represented: 576
  • AHRI equipment type: Central HP
  • AHRI tonnage: 2.5833333333333335
  • AHRI refrigerant: R-454B
  • Verified catalog model: H5H3V36*K*AAA*
  • Verified product family: N5H9V Deluxe 23 VS Heat Pump
  • Verified catalog brand: ACiQ
  • Verified ENERGY STAR AHRI model: H5H3V36*K*AAA*
  • ENERGY STAR dataset: ENERGY STAR Certified Heat Pumps
  • Sample AHRI reference: 216635231
  • System manufacturer: Carrier Corporation
  • Outdoor unit brand: ACIQ
  • Series: Deluxe 23 VS Heat Pump
  • Nominal capacity: 3 ton
  • Nominal cooling capacity: 36,000 BTU nominal cooling capacity
  • ENERGY STAR matched-system cooling capacity: 34,400 BTU/h
  • ENERGY STAR matched-system heating capacity at 47F: 34,200 BTU/h
  • ENERGY STAR matched-system heating capacity at 17F: 29,800 BTU/h
  • ENERGY STAR matched-system SEER2: 21.50
  • ENERGY STAR matched-system EER2: 12.50
  • ENERGY STAR matched-system HSPF2: 9.50
  • Compressor staging: Continuously variable
  • Refrigerant: R-454B (GWP:470 | Lower GWP)
  • ENERGY STAR certified date: 2026-02-11
  • ACiQ 36K public heat-pump product media: https://aciq.com/residential-products/high-efficiency-heating-and-cooling-solutions/high-efficiency-heat-pump-systems/high-efficiency-heat-pump-extreme-plus-series/aciq-36-pah-aciq-36-hpd/
  • ENERGY STAR source dataset: https://data.energystar.gov/d/83eb-xbyy

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 218019762

AHRI 218019762 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218019764

AHRI 218019764 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit EA*5X37M17A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218019766

AHRI 218019766 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit ESH5X36M12A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218019768

AHRI 218019768 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit ESH5X42M12A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218019769

AHRI 218019769 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit ESH5X48M12A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218019771

AHRI 218019771 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit ESH5X60M12A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 216635231

AHRI 216635231 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit FCMA5B48L0C*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 216635285

AHRI 216635285 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 216635286

AHRI 216635286 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 216635287

AHRI 216635287 identifies a Mass Save qualified Central HP <5.4 tons from ACIQ with outdoor unit H5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.
Loading more

Service planning

How GreenFlow handles H5H3V36*K*AAA* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
