Air-source heat pump

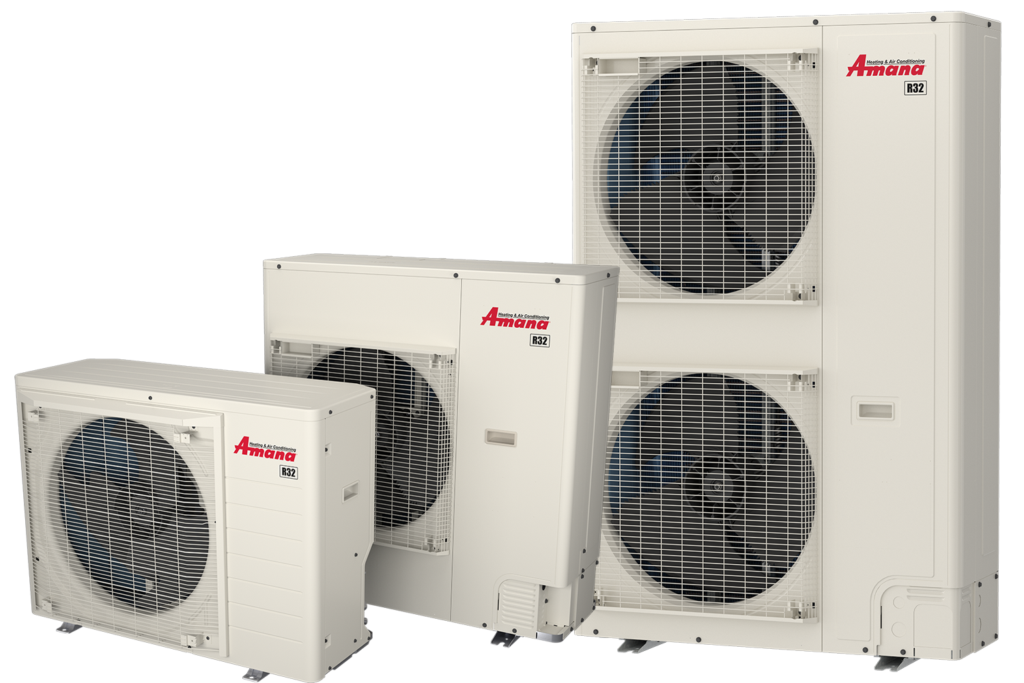

Amana ASZC703610A*
- Category
- Air-source heat pump
- Series
- ASZC7
- Model record
- Model pattern
- Certifications
- 11 linked
Canonical product data
Specifications
- Product Type
- HP - Split System
- Compressor Staging
- Two-stage
- Connected Capable
- No
- Cooling Capacity (Mode: cooling)
- 34800 Btu/h
- Eer2 (Mode: cooling)
- 12.5 Btu/(W.h)
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
- 21000 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 17000 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
- 34000 Btu/h
- Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 2
- Hspf2 (Mode: heating)
- 8.2 Btu/(W.h)
- Installation Capabilities
- Airflow measurement or external static pressure, Automatic system discovery, Preprogrammed system tests, Test mode for manual measurements
- Refrigerant With Gwp Claim
- R-410A (GWP:2088)
- Seer2 (Mode: cooling)
- 17.2 Btu/(W.h)
AHRI 211641725
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- AMVT42CP1400A*
AHRI 211642007
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- CHPTA3630*4A*+MBVC1601**-1A*
AHRI 211642008
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- CAPTA4230*4A*+MBVC1601**-1A*
AHRI 211642026
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- CAPTA4230*4A*
- Furnace model
- A*VC961005CNB*
AHRI 211642027
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- CHPTA3630*4A*
- Furnace model
- A*VC960804CNB*
AHRI 213502173
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- AMVT42CP1400B*
AHRI 213816211
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- CHPTA3630*4A*+MBVB16CP1X00A*
AHRI 213816212
- Brand
- Amana
- Outdoor model
- ASZC703610A*
- Indoor model
- CAPTA4230*4A*+MBVB16CP1X00A*
