Air-source heat pump

Back to American Standard products

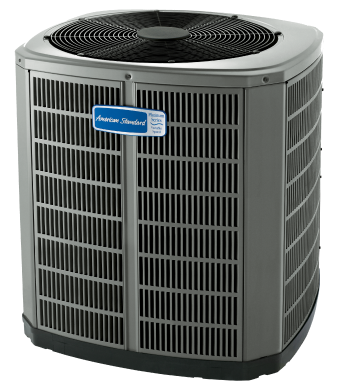

American Standard 4A6V8X24A1

Request Service Equipment Quote

Category: Air-source heat pump
Series: XV18I
Model record: Exact model
Certifications: 55 linked

Canonical product data

Specifications

Product Type: HP - Split System
Compressor Staging: Continuously variable
Connected Capable: No
Cooling Capacity (Mode: cooling): 22800 Btu/h
Eer2 (Mode: cooling): 12.5 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 12400 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 16300 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 19600 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 1.8
Hspf2 (Mode: heating): 8.2 Btu/(W.h)
Refrigerant With Gwp Claim: R-410A (GWP:2088)
Seer2 (Mode: cooling): 17.5 Btu/(W.h)
