Air-source heat pump
Back to American Standard products

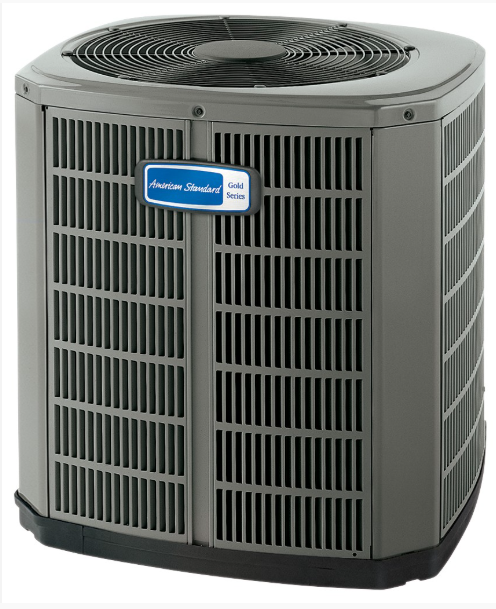

American Standard 5A6H7024A1
- Category
- Air-source heat pump
- Series
- GOLD 17
- Model record
- Exact model
- Certifications
- 688 linked
Canonical product data
Specifications
- Product Type
- HP - Split System
- Compressor Staging
- Two-stage
- Connected Capable
- No
- Cooling Capacity (Mode: cooling)
- 23800 Btu/h
- Eer2 (Mode: cooling)
- 12.5 Btu/(W.h)
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
- 15400 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 17400 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
- 21800 Btu/h
- Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 2.1
- Hspf2 (Mode: heating)
- 9.5 Btu/(W.h)
- Refrigerant With Gwp Claim
- R-454B (GWP:470 | Lower GWP)
- Seer2 (Mode: cooling)
- 17.1 Btu/(W.h)
