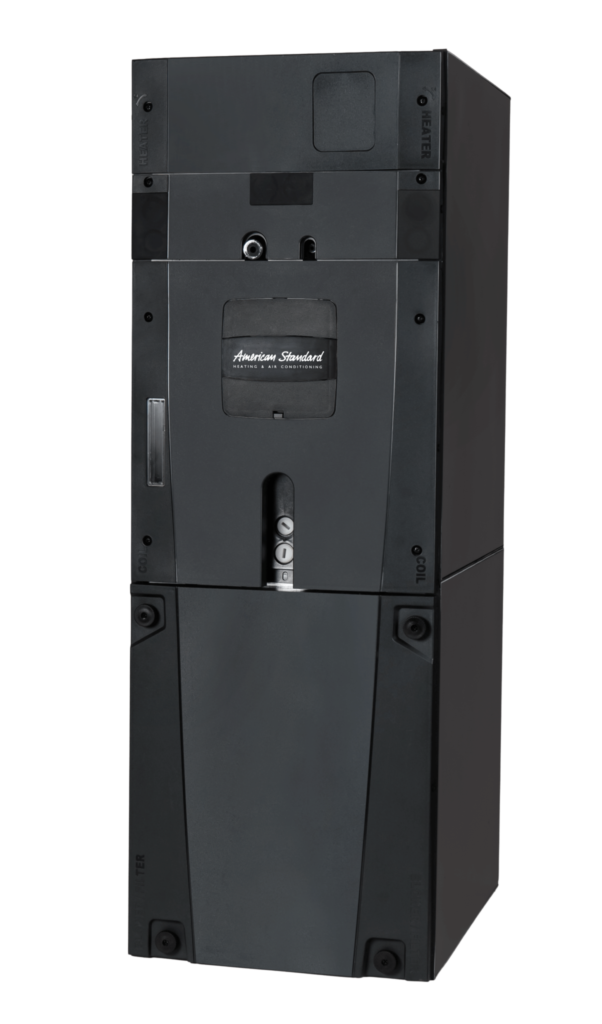

American Standard 5TAMXD05AV41
- Category
- Indoor unit
- Series
- Not assigned in catalog
- Model record
- Exact model
- Certifications
- 13 linked
Canonical product data
Specifications
- Product Type
- HP - Split System
- Compressor Staging
- Single stage
- Connected Capable
- No
- Cooling Capacity (Mode: cooling)
- 24600 Btu/h
- Eer2 (Mode: cooling)
- 12 Btu/(W.h)
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
- 14500 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 11100 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
- 22000 Btu/h
- Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 2.1
- Hspf2 (Mode: heating)
- 8.1 Btu/(W.h)
- Refrigerant With Gwp Claim
- R-454B (GWP:470 | Lower GWP)
- Seer2 (Mode: cooling)
- 16 Btu/(W.h)
