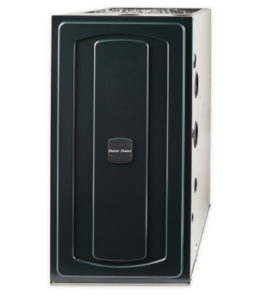

American Standard S9X1C100D5PSB

Request Service Equipment Quote

Category: Furnace
Series: Not assigned in catalog
Model record: Exact model
Certifications: 11 linked

Canonical product data

Specifications

Product Type: HP - Split System
Compressor Staging: Single stage
Connected Capable: No
Cooling Capacity (Mode: cooling): 33800 Btu/h
Eer2 (Mode: cooling): 12 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 22000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 31800 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 17500 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 2.2
Hspf2 (Mode: heating): 8.1 Btu/(W.h)
Refrigerant With Gwp Claim: R-454B (GWP:470 | Lower GWP)
Seer2 (Mode: cooling): 15.2 Btu/(W.h)
