Bryant 249VAN036**AA*

Category
Air-source heat pump
Series
Preferred 19 SEER2 VS HP
Model record
Model pattern
Certifications
950 linked

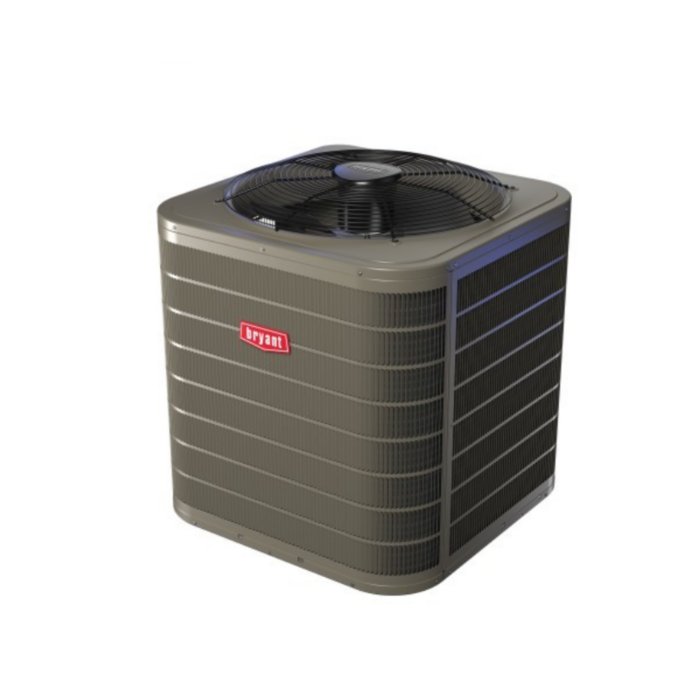

Bryant 249VAN036**AA* product image

Canonical product data

Specifications

Product Type
HP - Split System
Compressor Staging
Continuously variable
Connected Capable
No
Cooling Capacity (Mode: cooling)
37600 Btu/h
Eer2 (Mode: cooling)
12.5 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
37200 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
37000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
26200 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
2.14
Hspf2 (Mode: heating)
9 Btu/(W.h)
Refrigerant With Gwp Claim
R-454B (GWP:470 | Lower GWP)
Seer2 (Mode: cooling)
16 Btu/(W.h)

Matched systems

Certificates

474 verified catalog relationships.

Search AHRI
ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908871

AHRI 217908871 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit FT5AN(B,X)C36L*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908872

AHRI 217908872 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit FG5ANXC36L*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908873

AHRI 217908873 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit PF5TNXC36L*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908888

AHRI 217908888 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit CVAMA3617XMA*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908903

AHRI 217908903 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit CVAMA3617XMA*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908918

AHRI 217908918 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit CVAMA3617XMA*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908933

AHRI 217908933 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit CVAMA3617XMA*.

ENERGY STAR certified · Mass Save eligible HP - Split System

AHRI 217908948

AHRI 217908948 identifies a Mass Save qualified HP - Split System from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 249VAN036**AA* and indoor unit CVAMA3617XMA*.
