Bryant Heat pump condensing unit 293VAN024**AA*

Schedule Service Check Availability
Bryant Bryant AHRI Outdoor - 293VAN Heat pump condensing unit Repair, maintenance, and replacement planning

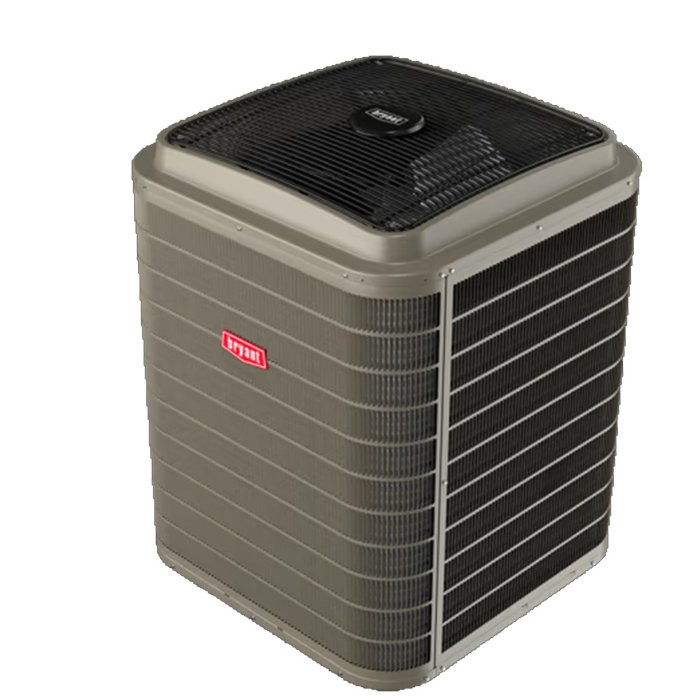

Bryant 293VAN024**AA* product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: 293VAN024**AA*
  • AHRI records represented: 430
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.9
  • AHRI refrigerant: R-454B
  • Verified catalog model: 293VAN02400A
  • Verified product family: 293VAN
  • Verified catalog brand: Bryant
  • Catalog Model: 293VAN02400A
  • Manufacturer Number: 293VAN02400A
  • Catalog SKU: 1604089258158036
  • Catalog Brand: Bryant
  • Product Family: 293VAN
  • Tonnage: 2
  • SEER2: 23
  • Refrigerant: R-454B
  • Approvals: UL Listed
  • Brand: Bryant
  • Color: Dusk Brown
  • Compressor Type: Scroll
  • Condenser Fan Discharge: Vertical
  • Condenser Fan Motor Qty: 1
  • Condenser Motor HP: 1/3
  • Condenser Motor RPM: 475-800
  • Condenser Motor Speeds: Variable
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Cooling Capacity: 24,000
  • Cooling Rated Capacity Btu/h: 24000
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • EER2: 13
  • Energy Star Rated: YES
  • HSPF2: 10
  • Heating Capacity: 24,000
  • Height: 47.1875
  • Inverter: NO
  • Length: 35
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Metering Device: EEV - Electronic Expansion Valve
  • OPT Code: 1P293VAN02400A
  • Phase: Single
  • Prop 65: YES
  • Stages Cooling: Variable
  • Stages Heating: Variable
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 3/4"
  • Tier: Evolution
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 324
  • Width: 35

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217624253

AHRI 217624253 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit FE5BN(B,X)C36L*+UI.
Eligible Central HP <5.4 tons

AHRI 217624278

AHRI 217624278 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2414AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624280

AHRI 217624280 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2414AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624282

AHRI 217624282 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624284

AHRI 217624284 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624286

AHRI 217624286 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624288

AHRI 217624288 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624290

AHRI 217624290 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624292

AHRI 217624292 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217624294

AHRI 217624294 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN024**AA* and indoor unit CAA**2417AM*+UI.
Loading more

Service planning

How GreenFlow handles 293VAN024**AA* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
