Bryant Heat pump condensing unit 293VAN036**AA*

Schedule Service Check Availability
Bryant Bryant AHRI Outdoor - 293VAN Heat pump condensing unit Repair, maintenance, and replacement planning

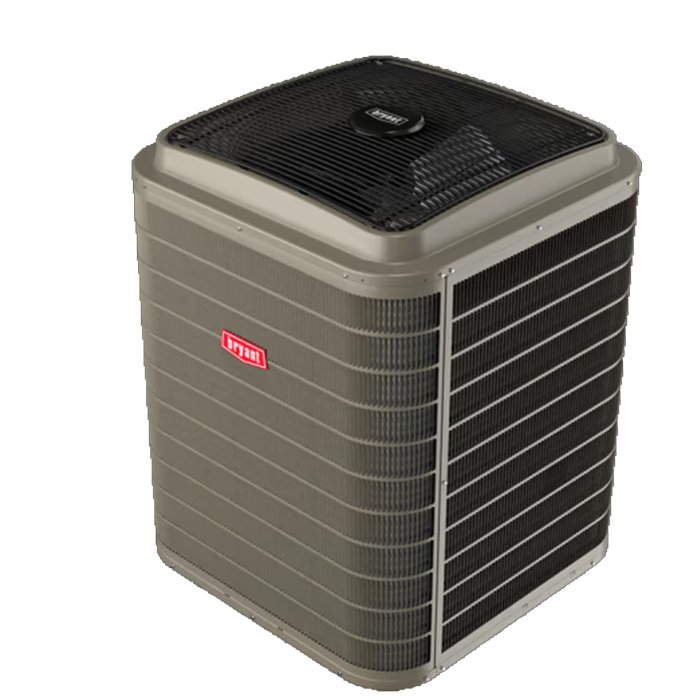

Bryant 293VAN036**AA* product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: 293VAN036**AA*
  • AHRI records represented: 576
  • AHRI equipment type: Central HP
  • AHRI tonnage: 2.6666666666666665
  • AHRI refrigerant: R-454B
  • Verified catalog model: 293VAN03600A
  • Verified product family: 293VAN
  • Verified catalog brand: Bryant
  • Catalog Model: 293VAN03600A
  • Manufacturer Number: 293VAN03600A
  • Catalog SKU: 1604089257742646
  • Catalog Brand: Bryant
  • Product Family: 293VAN
  • Tonnage: 3
  • SEER2: 23
  • Refrigerant: R-454B
  • Approvals: UL Listed
  • Brand: Bryant
  • CFM: 4,700
  • Color: Dusk Brown
  • Compressor Type: Rotary
  • Condenser Coil Fins Per Inch (FPI): 20
  • Condenser Fan Blade Diameter: 26
  • Condenser Fan CFM: 4700
  • Condenser Fan Discharge: Vertical
  • Condenser Fan Motor Qty: 1
  • Condenser Motor HP: 1/3
  • Condenser Motor RPM: 200-750
  • Condenser Motor Speeds: Variable
  • Condenser Motor Type: ECM (Electronically Commutated Motor)
  • Cooling Capacity: 36,000
  • Cooling Rated Capacity Btu/h: 36000
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • EER2: 13
  • Energy Star Rated: YES
  • Full Load Amps: 0.88
  • HSPF2: 10
  • Heating Capacity: 23,000-40,000
  • Height: 47.19
  • Inverter: YES
  • Length: 35
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Locked Rotor Amps (LRA): 14.3
  • Maximum Overcurrent Protection (MOCP): 25
  • Metering Device: EEV - Electronic Expansion Valve
  • OPT Code: 1P293VAN03600A
  • Phase: Single
  • Prop 65: YES
  • Rated Load Amps (RLA): 14.3
  • Sound Level (dBA): 56
  • Stages Cooling: Variable
  • Stages Heating: Variable
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 7/8"
  • Tier: Evolution
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 318
  • Width: 35

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217106161

AHRI 217106161 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**3617AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106162

AHRI 217106162 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**3617AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106163

AHRI 217106163 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**4221AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106164

AHRI 217106164 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**4221AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106165

AHRI 217106165 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**4821AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106166

AHRI 217106166 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**4821AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106167

AHRI 217106167 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**6121AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106168

AHRI 217106168 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CAA**6121AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106169

AHRI 217106169 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CSAH*3612AM*+UI.
Eligible Central HP <5.4 tons

AHRI 217106170

AHRI 217106170 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 293VAN036**AA* and indoor unit CSAH*3612AM*+UI.
Loading more

Service planning

How GreenFlow handles 293VAN036**AA* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
