Bryant Heat pump component 40MCCAQ09XA3

Schedule Service Check Availability
Bryant Bryant AHRI Indoor - 40MCCAQ Heat pump component Repair, maintenance, and replacement planning

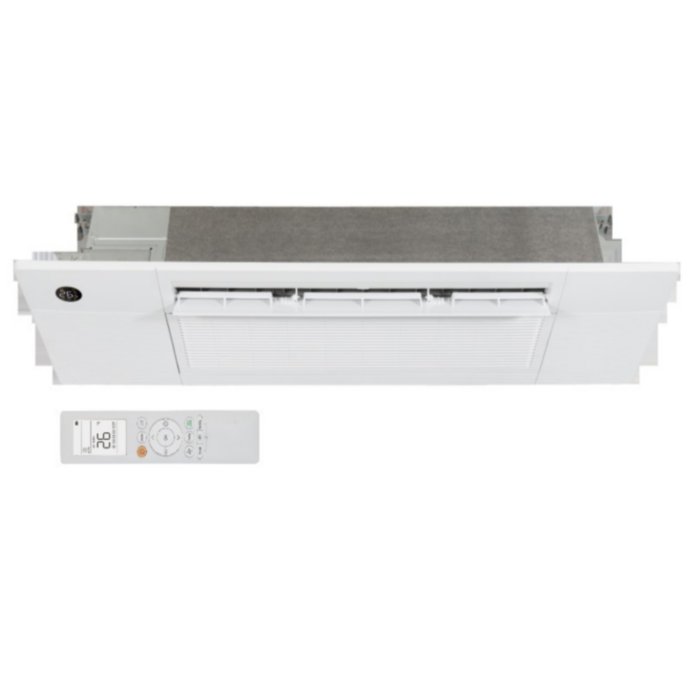

Bryant 40MCCAQ09XA3 product image

Technical Specifications

Product Specs

  • AHRI unit role: Indoor
  • AHRI model/pattern: 40MCCAQ09XA3
  • AHRI records represented: 2
  • AHRI equipment type: HP - Mini or Multi Split
  • AHRI refrigerant: R-410A
  • Verified catalog model: 40MCCAQ09XA3
  • Verified product family: 40MCCAQ
  • Verified catalog brand: Carrier, Bryant, Payne
  • Catalog Model: 40MCCAQ09XA3
  • Manufacturer Number: 40MCCAQ09XA3
  • Catalog SKU: 1604089127828186
  • Catalog Brand: Carrier, Bryant, Payne
  • Product Family: 40MCCAQ
  • Tonnage: 0.75, 0.5
  • Refrigerant: R-410A
  • Approvals: ETL Listed; UL Listed
  • Blower Motor HP: 1/25
  • Blower Motor RPM: 1,024
  • Blower Motor Speeds: 4
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Motor Watts: 78.6
  • Blower Wheel Diameter: 3 7/10"
  • Blower Wheel Width: 32 7/25"
  • Brand: Carrier, Bryant, Payne
  • CFM: 235-341
  • CFM Heating: 235-341
  • Color: White
  • Cooling Capacity: 3,300-14,300
  • Cooling Rated Capacity Btu/h: 9000
  • Country Of Origin: CHN
  • Cycle/Hertz: 60 Hz
  • Drain Connection Size: 3/8"
  • Energy Star Rated: NO
  • Evaporator Coil Fins Per Inch (FPI): 20
  • Heating Capacity: 6,000-9,000
  • Height: 8.98
  • Length: 13.19
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 1/4"
  • Metering Device: EEV - Electronic Expansion Valve
  • Mounting Type: Ceiling Cassette
  • Multi Zone: YES
  • OPT Code: 1P40MCCAQ09XA3
  • Phase: Single
  • Prop 65: YES
  • Remote Control Included: YES
  • SEER: 18-20
  • Sound Level (dBA): 35-40
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 3/8"
  • Tier: Comfort
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 43.87
  • Width: 50.31

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
ENERGY STAR certified HP - Mini or Multi Split

AHRI 209270293

AHRI 209270293 identifies a Mass Save qualified HP - Mini or Multi Split from Bryant with outdoor unit 38MARBQ09AA3 and indoor unit 40MCCAQ09XA3.
ENERGY STAR certified HP - Mini or Multi Split

AHRI 210857467

AHRI 210857467 identifies a Mass Save qualified HP - Mini or Multi Split from Bryant with outdoor unit 38MARBQ06AA3 and indoor unit 40MCCAQ09XA3.
