Bryant Gas furnace 82*TB60090V21***

Schedule Service Check Availability
Bryant Bryant AHRI Furnace - 820TB Gas furnace Repair, maintenance, and replacement planning

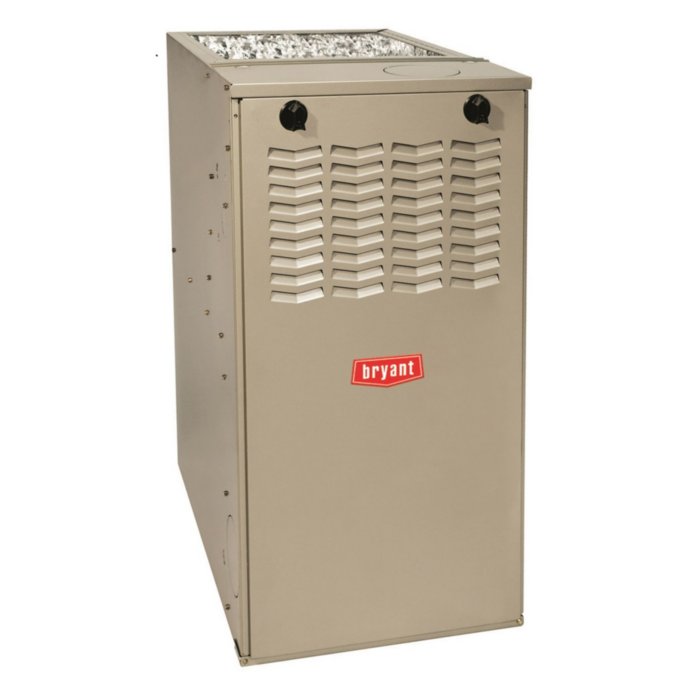

Bryant 82*TB60090V21*** product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: 82*TB60090V21***
  • AHRI records represented: 184
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.95
  • AHRI refrigerant: R-454B
  • Verified catalog model: 820TB60090V21
  • Verified product family: 820TB
  • Verified catalog brand: Bryant
  • Verified AHRI-to-catalog mapping: 82*TB60090V21*** -> 820TB60090V21
  • Verified model family: 820TB
  • Equipment type: Gas furnace
  • Application: matched furnace for split-system air conditioner or heat pump combinations
  • Catalog Model: 820TB60090V21
  • Manufacturer Number: 820TB60090V21
  • Catalog SKU: 1604089214411348
  • Catalog Brand: Bryant
  • Product Family: 820TB
  • AFUE: 80
  • Air Flow Direction: Multi-Position
  • BTU Input: 58,000-88,000
  • BTU Output: 47,000-71,000
  • Blower Motor HP: 1
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 11"
  • Brand: Bryant
  • CFM: 330-2,285
  • CFM Heating: 1,530-1,690
  • Cabinet Width: 21
  • Color: Taupe
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: NO
  • FER Compliant: NO
  • Filter Size: 21" x 25" x 3/4"
  • Fuel Type: Natural Gas
  • Full Load Amps: 11.5
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 36
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 31
  • Maximum Overcurrent Protection (MOCP): 20
  • OPT Code: 1P820TB60090V21
  • Phase: Single
  • Prop 65: YES
  • Stages Heating: 2
  • Tier: Preferred
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 147
  • Width: 23

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 216735658

AHRI 216735658 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ24AA3 and indoor unit CAA**3721AM*.
Eligible Central HP <5.4 tons

AHRI 217191750

AHRI 217191750 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ24AA3 and indoor unit D(A,C,E)24A3J+TDR.
Eligible Central HP <5.4 tons

AHRI 217393924

AHRI 217393924 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4812AM*.
Eligible Central HP <5.4 tons

AHRI 217393998

AHRI 217393998 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Eligible Central HP <5.4 tons

AHRI 217394072

AHRI 217394072 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CSAH*3612AM*.
Eligible Central HP <5.4 tons

AHRI 217394139

AHRI 217394139 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4821AM*.
Eligible Central HP <5.4 tons

AHRI 217394200

AHRI 217394200 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4321AM*.
Eligible Central HP <5.4 tons

AHRI 217394261

AHRI 217394261 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**4221AM*.
Eligible Central HP <5.4 tons

AHRI 217394321

AHRI 217394321 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ36AA3+TIC2025-0016 and indoor unit CAA**3721AM*.
Eligible Central HP <5.4 tons

AHRI 217398737

AHRI 217398737 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 37MUHAQ30AA3+TIC2025-0016 and indoor unit CSAH*4212AM*.
Loading more

Service planning

How GreenFlow handles 82*TB60090V21*** requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
