Bryant Gas furnace 88*TB60070C21***

Schedule Service Check Availability
Bryant Bryant AHRI Furnace - 880TB Gas furnace Repair, maintenance, and replacement planning

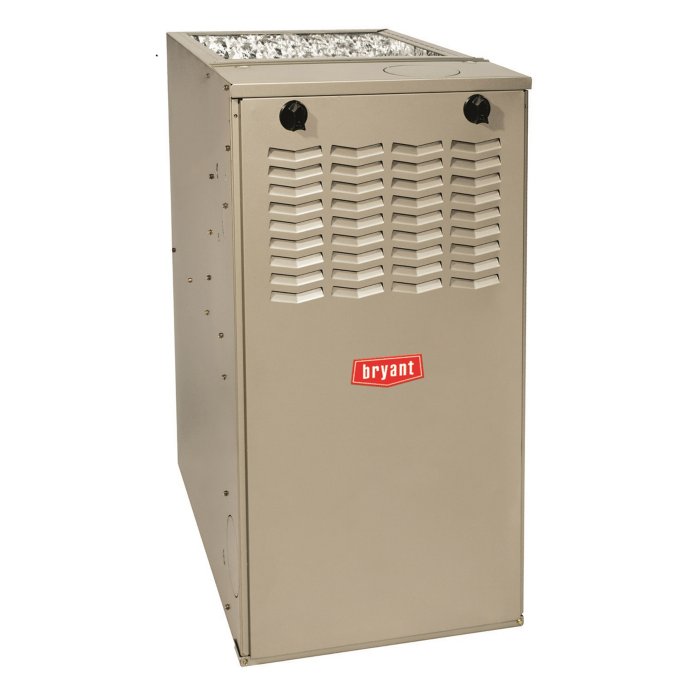

Bryant 88*TB60070C21*** product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: 88*TB60070C21***
  • AHRI records represented: 145
  • AHRI equipment type: Central HP
  • AHRI tonnage: 4.083333333333333
  • AHRI refrigerant: R-454B
  • Verified catalog model: 880TB60070C21
  • Verified product family: 880TB
  • Verified catalog brand: Bryant
  • Verified AHRI-to-catalog mapping: 88*TB60070C21*** -> 880TB60070C21
  • Verified model family: 880TB
  • Equipment type: Gas furnace
  • Application: matched furnace for split-system air conditioner or heat pump combinations
  • Catalog Model: 880TB60070C21
  • Manufacturer Number: 880TB60070C21
  • Catalog SKU: 1604089219524099
  • Catalog Brand: Bryant
  • Product Family: 880TB
  • AFUE: 80
  • Air Flow Direction: Multi-Position
  • BTU Input: 43,500-66,000
  • BTU Output: 35,000-53,000
  • Blower Motor HP: 1
  • Blower Motor RPM: 1,200
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 10"
  • Brand: Bryant
  • CFM: 1,085-1,195
  • CFM Heating: 1,085-1,195
  • Cabinet Width: 21
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: NO
  • FER Compliant: YES
  • Filter Size: 20" x 25" x 3/4" (Bottom), 16" x 25" x 3/4" (Side)
  • Fuel Type: Natural Gas or LP
  • Full Load Amps: 12.8
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 33.3333
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29
  • Maximum Overcurrent Protection (MOCP): 20
  • OPT Code: 1P880TB60070C21
  • Phase: Single
  • Prop 65: YES
  • Stages Heating: 2
  • Tier: Evolution
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 147
  • Width: 21

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 215588092

AHRI 215588092 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 291VAN054**AA* and indoor unit CAA**6024AM*+UI.
Eligible Central HP <5.4 tons

AHRI 215588162

AHRI 215588162 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 291VAN054**AA* and indoor unit CSAH*6012AM*+UI.
Eligible Central HP <5.4 tons

AHRI 215588244

AHRI 215588244 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 291VAN054**AA* and indoor unit CVAMA6024XMA*+UI.
Eligible Central HP <5.4 tons

AHRI 215588314

AHRI 215588314 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 291VAN054**AA* and indoor unit CVAVA4924XMA*+UI.
Eligible Central HP <5.4 tons

AHRI 215588354

AHRI 215588354 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 291VAN054**AA* and indoor unit CVAVA6024XMA*+UI.
Eligible Central HP <5.4 tons

AHRI 215669143

AHRI 215669143 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN036**AA* and indoor unit CAA**4821AM*+UI.
Eligible Central HP <5.4 tons

AHRI 215669303

AHRI 215669303 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN036**AA* and indoor unit CAA**6024AM*+UI.
Eligible Central HP <5.4 tons

AHRI 215669473

AHRI 215669473 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN036**AA* and indoor unit CAA**6121AM*+UI.
Eligible Central HP <5.4 tons

AHRI 215669623

AHRI 215669623 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN036**AA* and indoor unit CAA**6124AM*+UI.
Eligible Central HP <5.4 tons

AHRI 215670187

AHRI 215670187 identifies a Mass Save qualified Central HP <5.4 tons from BRYANT HEATING AND COOLING SYSTEMS with outdoor unit 290VAN036**AA* and indoor unit CSAH*4812AM*+UI.
Loading more

Service planning

How GreenFlow handles 88*TB60070C21*** requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
