Product Specs
- AHRI unit role: Outdoor
- AHRI model/pattern: PH7TAN436**AA*
- AHRI records represented: 1
- AHRI equipment type: HP - Split System
- AHRI refrigerant: R-410A

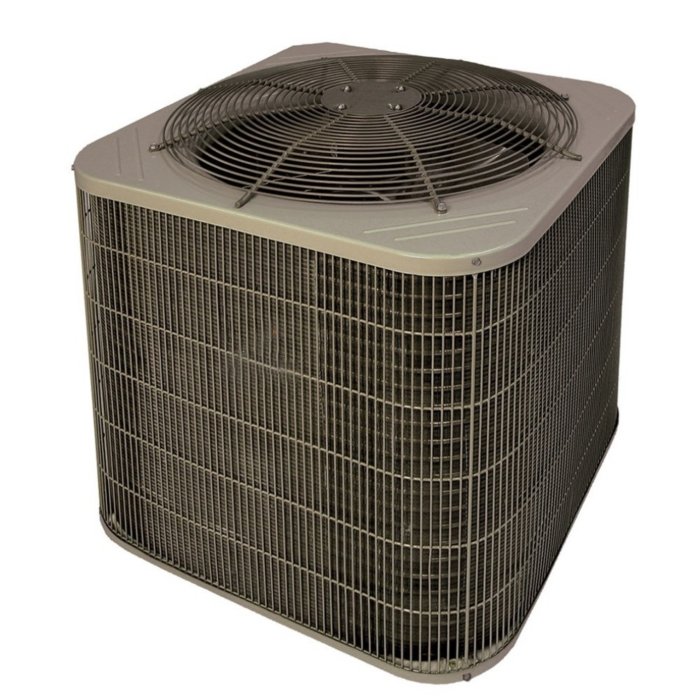

- Verified catalog model: PH7TAN43600A
- Verified product family: PH7T
- Verified catalog brand: Bryant, Payne
- Catalog Model: PH7TAN43600A
- Manufacturer Number: PH7TAN43600A
- Catalog SKU: 1604089139760144
- Catalog Brand: Bryant, Payne
- Product Family: PH7T
- Tonnage: 3
- SEER2: 17
- Refrigerant: R-410A
- Brand: Bryant, Payne
- Color: Gray
- Compressor Type: Scroll
- Condenser Coil Fins Per Inch (FPI): 20
- Condenser Fan CFM: 3158
- Condenser Fan Discharge: Vertical
- Condenser Fan Motor Qty: 1
- Condenser Motor HP: 1/12
- Condenser Motor RPM: 800
- Condenser Motor Speeds: 1
- Condenser Motor Type: PSC (Permanent Split Capacitor)
- Cooling Capacity: 36,000
- Cooling Rated Capacity Btu/h: 36000
- Country Of Origin: MEX
- Cycle/Hertz: 60 Hz
- EER2: 13
- Energy Star Rated: NO
- Full Load Amps: 0.6
- HSPF2: 8.1
- Heating Capacity: 36,000
- Height: 38.8
- Inverter: NO
- Length: 35
- Liquid Line Fitting Type: Sweat or Braze
- Liquid Line Size (OD): 3/8"
- Locked Rotor Amps (LRA): 92
- Maximum Overcurrent Protection (MOCP): 40
- Maximum Piping Length: 250'
- OPT Code: 1PPH7TAN43600A
- Phase: Single
- Prop 65: YES
- Rated Load Amps (RLA): 19.7
- Sound Level (dBA): 70
- Stages Cooling: 2
- Stages Heating: 2
- Suction Line Fitting Type: Sweat or Braze
- Suction Line Size (OD): 7/8"
- Tier: Sentry
- UPC: See Optical
- Voltage: 208-230 VAC
- Weight: 245
- Width: 35
