Air Conditioner

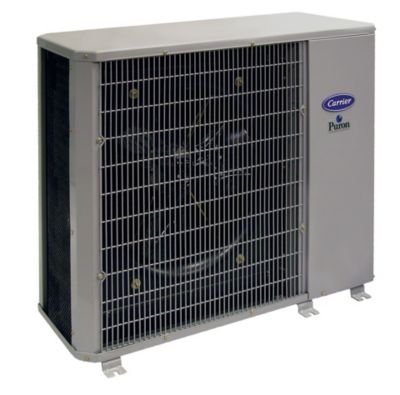

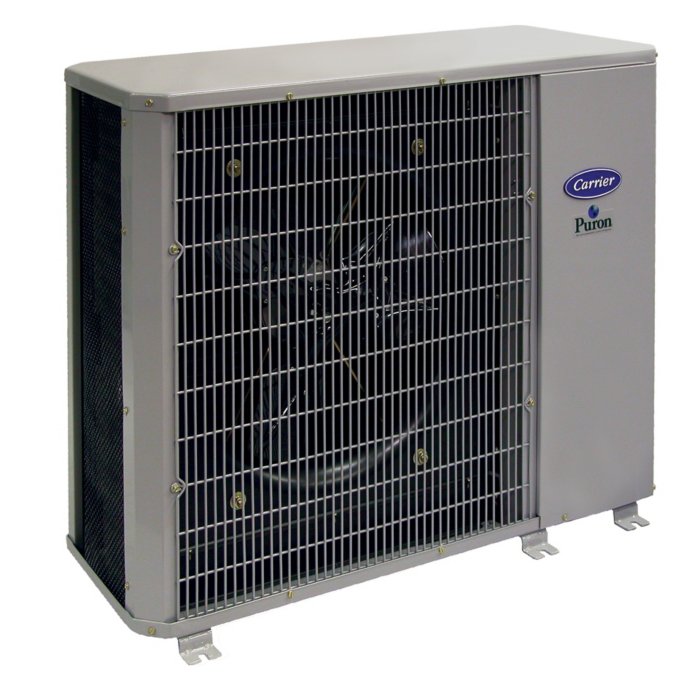

Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A service and support

Carrier Residential Air Conditioner - 24AHA4 Air Conditioner Repair, maintenance, and replacement planning

Product service snapshot

Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A service details

Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A is a Carrier® air conditioner record from the Carrier Enterprise catalog. Catalog model: 24AHA424A003. Product family: 24AHA4. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

Brand: Carrier
Model or series: Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A
Equipment type: Air Conditioner
Product group: Residential Air Conditioner - 24AHA4

Technical snapshot

Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A technical snapshot

Product Specs

Model: 24AHA424A003
Manufacturer Number: 24AHA424A003
Vendor Number: 24AHA424A003
Catalog Brand: Carrier®
Product Family: 24AHA4
AHRI Usage: Outdoor
Approvals: UL Listed
Brand: Carrier®
Color: Gray
Compressor Type: Scroll
Condenser Coil Fins Per Inch (FPI): 20
Condenser Fan CFM: 1285
Condenser Fan Discharge: Horizontal
Condenser Motor HP: 1/12
Condenser Motor RPM: 800
Condenser Motor Speeds: Variable
Condenser Motor Type: PSC (Permanent Split Capacitor)
Condenser Motor Watts: 110
Cooling Capacity: 21,600
Cooling Rated Capacity Btu/h: 24000
Country Of Origin: USA
Cubic Measurement: 9.6888
Cycle/Hertz: 60 Hz
Dimensional Weight: 190
EER: 11.7-12.2
Energy Star Rated: NO
Fan Diameter: 18
Full Load Amps: 0.5
Height: 31.125
High Heat: NO
Inverter: NO
Length: 14.5625
Liquid Line Fitting Type: Sweat or Braze
Liquid Line Size (OD): 3/8"
Locked Rotor Amps (LRA): 62.9
Maximum Overcurrent Protection (MOCP): 25
Maximum Piping Height: 175'
Maximum Piping Length: 250'
Metering Device: TXV/TEV - Thermostatic Expansion Valve
Number Of HVAC Zones: 1
OPT Code: 1P24AHA424A003
Phase: Single
Prop 65: YES
Rated Current Amps (RCA): 10.9
Rated Load Amps (RLA): 10.9
Refrigerant: R-410A
SEER: 14
Sound Level (dBA): 65
Stages Cooling: 1
Suction Line Fitting Type: Sweat or Braze
Suction Line Size (OD): 3/4"
Tier: Performance™
Tonnage: 2
UOM: EA
UPC: See Optical
Voltage: 208-230 VAC
Weight: 148
Width: 36.9375

Useful troubleshooting details

Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A requests

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A service questions

Can GreenFlow help with Carrier Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A service requests?

Yes. GreenFlow can help collect the right details for Carrier Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A?

Helpful symptoms include no cooling, weak airflow, uneven rooms, short cycling, outdoor-unit noise, condensate concerns, thermostat behavior, and whether the request is repair, maintenance, or replacement planning.

Is Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A used for residential or commercial properties?

Air conditioner requests are usually residential or managed-property cooling requests, with some light-commercial applications depending on the equipment type, access, and building layout.

What helps schedule Carrier® Performance™ - 2 Ton 14 SEER Residential Horizontal Air Conditioner Condensing Unit R-410A service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
