Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) service and support

Schedule Service Check Availability
Carrier Residential Air Conditioner - 24AHA4 Air Conditioner Repair, maintenance, and replacement planning

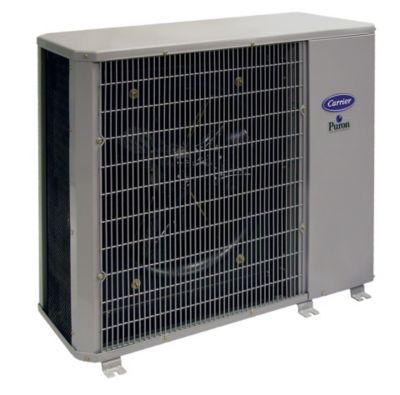

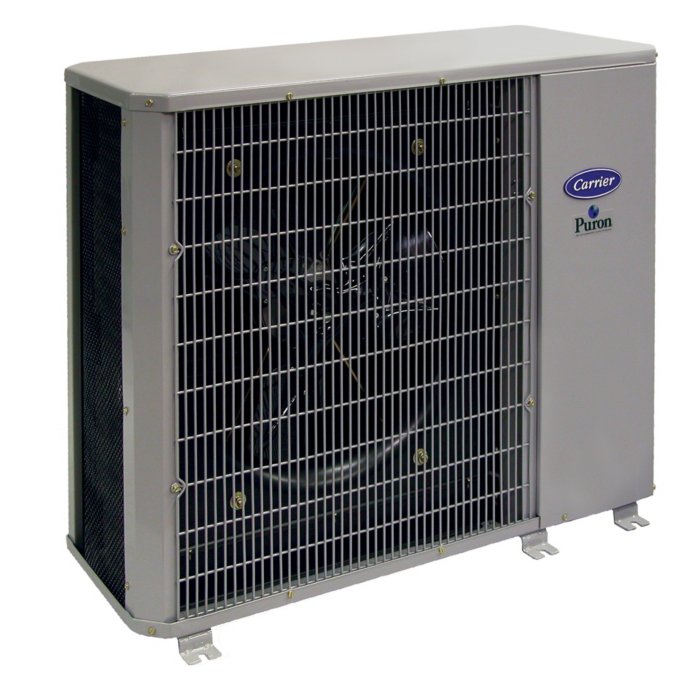

Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) product image

Product service snapshot

Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) service details

Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) is a Carrier® air conditioner record from the Carrier Enterprise catalog. Catalog model: 24AHA448A005. Product family: 24AHA4. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

  • Brand: Carrier
  • Model or series: Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3)
  • Equipment type: Air Conditioner
  • Product group: Residential Air Conditioner - 24AHA4

Technical snapshot

Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) technical snapshot

Product Specs

  • Model: 24AHA448A005
  • Manufacturer Number: 24AHA448A005
  • Vendor Number: 24AHA448A005
  • Catalog Brand: Carrier®
  • Product Family: 24AHA4
  • AHRI Usage: Outdoor
  • Ambient Temperature Range: -20°F (-28.89°C)
  • Approvals: UL Listed; UL Recognized
  • Brand: Carrier®
  • Color: Gray
  • Compressor Type: Scroll
  • Condenser Coil Fins Per Inch (FPI): 20
  • Condenser Fan CFM: 2615
  • Condenser Fan Discharge: Horizontal
  • Condenser Motor HP: 1/4
  • Condenser Motor RPM: 800
  • Condenser Motor Speeds: Variable
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Condenser Motor Watts: 264
  • Cooling Capacity: 45,000
  • Cooling Rated Capacity Btu/h: 48000
  • Country Of Origin: USA
  • Cubic Measurement: 16.3127
  • Cycle/Hertz: 60 Hz
  • Dimensional Weight: 309
  • EER: 11.7-12.2
  • EER2: 10.5-13
  • Energy Star Rated: NO
  • Fan Diameter: 24
  • Full Load Amps: 1.2
  • Height: 37.125
  • High Heat: NO
  • Inverter: NO
  • Length: 17.0625
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Locked Rotor Amps (LRA): 83.1
  • Maximum Overcurrent Protection (MOCP): 30
  • Maximum Piping Height: 175'
  • Maximum Piping Length: 250'
  • Metering Device: TXV/TEV - Thermostatic Expansion Valve
  • Number Of HVAC Zones: 1
  • OPT Code: 1P24AHA448A005
  • Phase: Three
  • Prop 65: YES
  • Rated Current Amps (RCA): 13.7
  • Rated Load Amps (RLA): 13.7
  • Refrigerant: R-410A
  • Refrigerant Charge: 8.9 lb
  • SEER: 14
  • SEER2: 13.4-16
  • Sound Level (dBA): 70
  • Stages Cooling: 1
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 7/8"
  • Tier: Performance™
  • Tonnage: 4
  • UOM: EA
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 213
  • Width: 44.5

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) service questions

Can GreenFlow help with Carrier Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) service requests?

Yes. GreenFlow can help collect the right details for Carrier Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3)?

Helpful symptoms include no cooling, weak airflow, uneven rooms, short cycling, outdoor-unit noise, condensate concerns, thermostat behavior, and whether the request is repair, maintenance, or replacement planning.

Is Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) used for residential or commercial properties?

Air conditioner requests are usually residential or managed-property cooling requests, with some light-commercial applications depending on the equipment type, access, and building layout.

What helps schedule Carrier® Performance™ - 4 Ton 14 SEER Horizontal Air Conditioner Condensing Unit R-410A (208/230-3) service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
