Carrier Air Conditioner ® Comfort™ - 5 Ton Air Conditioner Condensing Unit R-410A

Install QuoteBook ServiceEquipment Quote
Carrier Residential Air Conditioner - 24SCB4 Air Conditioner Repair, maintenance, and replacement planning

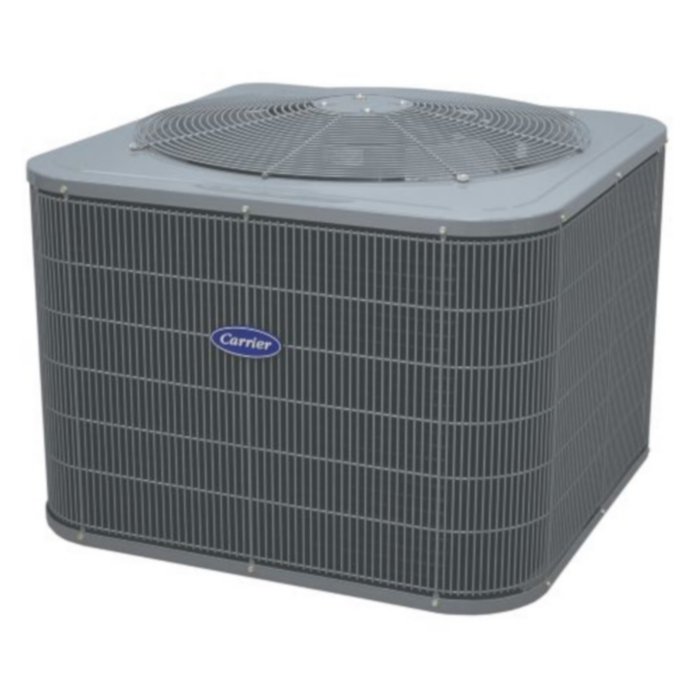

Carrier® Comfort™ - 5 Ton Air Conditioner Condensing Unit R-410A product image

Technical Specifications

Product Specs

  • Model: 24SCB460N003
  • Manufacturer Number: 24SCB460N003
  • Vendor Number: 24SCB460N003
  • Catalog Brand: Carrier®
  • Product Family: 24SCB4
  • AHRI Usage: Outdoor
  • Approvals: UL Listed
  • Brand: Carrier®
  • CFM: 4,000
  • Color: Gray
  • Compressor Type: Scroll
  • Condenser Coil Fins Per Inch (FPI): 20
  • Condenser Fan CFM: 4000
  • Condenser Fan Discharge: Vertical
  • Condenser Fan Motor Qty: 1
  • Condenser Motor HP: 1/4
  • Condenser Motor RPM: 1,100
  • Condenser Motor Speeds: 1
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Cooling Capacity: 60,000
  • Cooling Rated Capacity Btu/h: 60000
  • Country Of Origin: MEX
  • Cycle/Hertz: 60 Hz
  • EER2: 10.5-13
  • Energy Star Rated: NO
  • Full Load Amps: 1.52
  • Height: 35.5
  • Inverter: NO
  • Length: 31.1
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Locked Rotor Amps (LRA): 150
  • Maximum Overcurrent Protection (MOCP): 50
  • Maximum Piping Length: 200'
  • Metering Device: TXV/TEV - Thermostatic Expansion Valve
  • OPT Code: 1P24SCB460N003
  • Phase: Single
  • Prop 65: YES
  • Rated Load Amps (RLA): 25.6
  • Refrigerant: R-410A
  • SEER2: 13.4-14.5
  • Sound Level (dBA): 76
  • Stages Cooling: 1
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 1 1/8"
  • Tier: Comfort™
  • Tonnage: 5
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 190
  • Width: 31.1

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Comfort™ - 5 Ton Air Conditioner Condensing Unit R-410A requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
