Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A service and support

Carrier Residential Air Conditioner - 24VNA9 Air Conditioner Repair, maintenance, and replacement planning

Product service snapshot

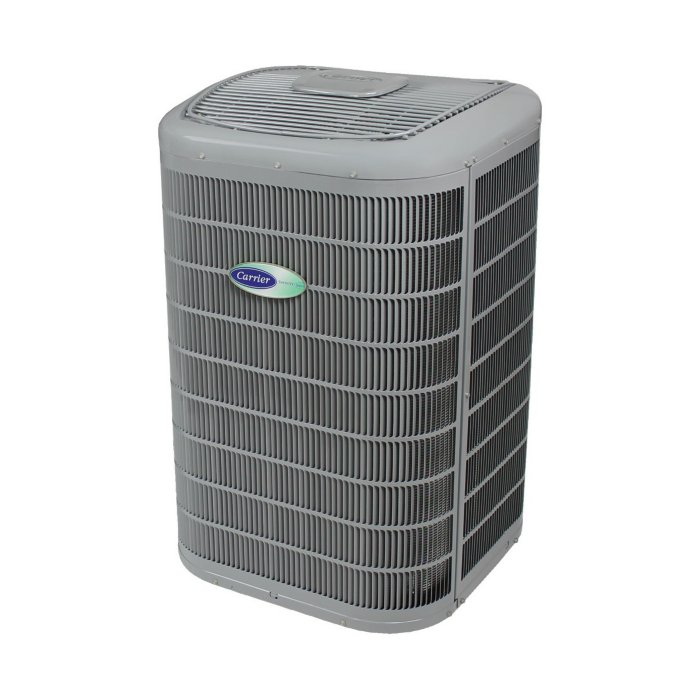

Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A service details

Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A is a Carrier® air conditioner record from the Carrier Enterprise catalog. Catalog model: 24VNA924B003. Product family: 24VNA9. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

Brand: Carrier
Model or series: Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A
Equipment type: Air Conditioner
Product group: Residential Air Conditioner - 24VNA9

Technical snapshot

Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A technical snapshot

Product Specs

Model: 24VNA924B003
Manufacturer Number: 24VNA924B003
Vendor Number: 24VNA924B003
Catalog Brand: Carrier®
Product Family: 24VNA9
AHRI Usage: Outdoor
Approvals: UL Listed; UL Recognized
Brand: Carrier®
CFM: 2,500
Color: Gray
Compressor Type: Rotary
Condenser Coil Fins Per Inch (FPI): 20
Condenser Fan Blade Diameter: 22
Condenser Fan Discharge: Vertical
Condenser Fan Motor Qty: 1
Condenser Motor HP: 1/5
Condenser Motor RPM: 1,050
Condenser Motor Speeds: Variable
Condenser Motor Type: ECM (Electronically Commutated Motor)
Cooling Capacity: 22,800-24,000
Cooling Rated Capacity Btu/h: 24000
Country Of Origin: USA
Cubic Measurement: 9.787
Cycle/Hertz: 60 Hz
Dimensional Weight: 162
EER: 9.5-11
EER2: 11
Energy Star Rated: YES
Full Load Amps: 0.58
Height: 31.625
Inverter: YES
Length: 23.125
Liquid Line Fitting Type: Sweat or Braze
Liquid Line Size (OD): 3/8"
Maximum Overcurrent Protection (MOCP): 20
Maximum Piping Length: 100'
Metering Device: TXV/TEV - Thermostatic Expansion Valve
OPT Code: IP24VNA924B003
Phase: Single
Prop 65: YES
Rated Current Amps (RCA): 10.3
Rated Load Amps (RLA): 10.3
Refrigerant: R-410A
SEER: 19
SEER2: 18
Sound Level (dBA): 55-68
Stages Cooling: Variable
Suction Line Fitting Type: Sweat or Braze
Suction Line Size (OD): 7/8"
Tier: Infinity™
Tonnage: 2
UOM: EA
UPC: See Optical
Voltage: 208-230 VAC
Weight: 135
Width: 23.125

Useful troubleshooting details

Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A requests

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A service questions

Can GreenFlow help with Carrier Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A service requests?

Yes. GreenFlow can help collect the right details for Carrier Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A?

Helpful symptoms include no cooling, weak airflow, uneven rooms, short cycling, outdoor-unit noise, condensate concerns, thermostat behavior, and whether the request is repair, maintenance, or replacement planning.

Is Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A used for residential or commercial properties?

Air conditioner requests are usually residential or managed-property cooling requests, with some light-commercial applications depending on the equipment type, access, and building layout.

What helps schedule Carrier® Infinity® - 2 Ton 19 SEER Residential Variable Speed Air Conditioner Condensing Unit R-410A service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
