Carrier 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) service and support

Schedule Service Check Availability
Carrier Commercial Heat Pump - 37VMB Heat Pump Repair, maintenance, and replacement planning

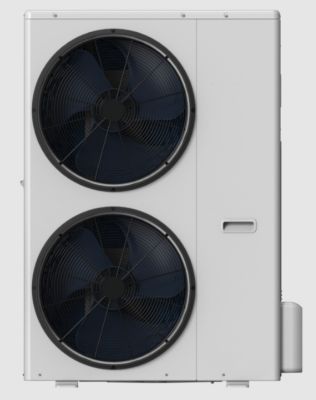

Carrier 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) product image

Product service snapshot

Carrier 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) service details

4 Ton VRF Heat Pump Outdoor Unit (208/230-1) is a Carrier®, Bryant®, Payne® heat pump record from the Carrier Enterprise catalog. Catalog model: 37VMB048HDS3-1. Product family: 37VMB. Green Flow Solution uses this page for commercial model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

  • Brand: Carrier
  • Model or series: 4 Ton VRF Heat Pump Outdoor Unit (208/230-1)
  • Equipment type: Heat Pump
  • Product group: Commercial Heat Pump - 37VMB

Technical snapshot

4 Ton VRF Heat Pump Outdoor Unit (208/230-1) technical snapshot

Product Specs

  • Model: 37VMB048HDS3-1
  • Manufacturer Number: 37VMB048HDS3-1
  • Vendor Number: 37VMB048HDS3-1
  • Catalog Brand: Carrier®, Bryant®, Payne®
  • Product Family: 37VMB
  • AHRI Usage: Outdoor
  • Brand: Carrier®, Bryant®, Payne®
  • CFM: 4,100
  • Color: Gray
  • Compressor Type: Rotary
  • Condenser Motor Type: ECM (Electronically Commutated Motor)
  • Cooling Capacity: 48,000-50,000
  • Cooling Rated Capacity Btu/h: 48000
  • Country Of Origin: Varies
  • Cycle/Hertz: 60 Hz
  • EER2: 10.3-11.7
  • Energy Star Rated: NO
  • Heating Capacity: 40,000-50,000
  • Height: 52.25
  • Length: 15.75
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 3/8"
  • Maximum Overcurrent Protection (MOCP): 40
  • OPT Code: 1P37VMB048HDS3-1
  • Phase: Single
  • Prop 65: YES
  • Rated Load Amps (RLA): 19
  • Refrigerant: R-454B
  • Sound Level (dBA): 60
  • Stages Cooling: 1
  • Stages Heating: 1
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 3/4"
  • Tonnage: 4
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 227
  • Width: 38.5

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

4 Ton VRF Heat Pump Outdoor Unit (208/230-1) service questions

Can GreenFlow help with Carrier 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) service requests?

Yes. GreenFlow can help collect the right details for Carrier 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for 4 Ton VRF Heat Pump Outdoor Unit (208/230-1)?

Helpful symptoms include no heat, no cooling, weak airflow, defrost or outdoor icing concerns, auxiliary heat behavior, thermostat issues, short cycling, unusual noise, and whether the request is urgent or planned maintenance.

Is 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) used for residential or commercial properties?

Heat pump requests may come from homes, condos, multifamily properties, managed buildings, and light-commercial spaces depending on the system type and building layout.

What helps schedule 4 Ton VRF Heat Pump Outdoor Unit (208/230-1) service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
