Carrier Heat Pump 3 Ton Up to 17 SEER Single-Zone Ductless Heat Pump Condensing Unit R-410A (208/230-1-60)

Install QuoteBook ServiceEquipment Quote
Carrier Residential Heat Pump - 38MBR Heat Pump Repair, maintenance, and replacement planning

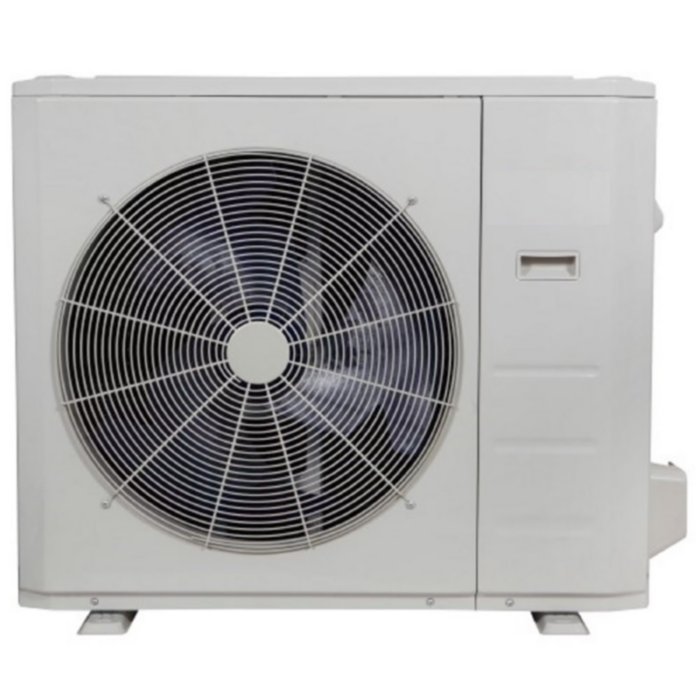

Carrier 3 Ton Up to 17 SEER Single-Zone Ductless Heat Pump Condensing Unit R-410A (208/230-1-60) product image

Technical Specifications

Product Specs

  • Model: 38MBRBQ36AA3
  • Manufacturer Number: 38MBRBQ36AA3
  • Vendor Number: 38MBRBQ36AA3
  • Catalog Brand: Carrier®, Bryant®, Payne®
  • Product Family: 38MBR
  • AHRI Usage: Outdoor
  • Brand: Carrier®, Bryant®, Payne®
  • CFM: 2,118
  • Color: Gray
  • Compressor Type: Rotary
  • Condenser Fan CFM: 2118
  • Condenser Motor HP: 4/25
  • Condenser Motor RPM: 500-950
  • Condenser Motor Speeds: 3
  • Condenser Motor Type: ECM (Electronically Commutated Motor)
  • Cooling Capacity: 8,500-57,300
  • Cooling Rated Capacity Btu/h: 36000
  • Country Of Origin: CHN
  • Cubic Measurement: 16.8356
  • Cycle/Hertz: 60 Hz
  • EER: 8.5
  • Energy Star Rated: YES
  • Heating Capacity: 10,000-45,400
  • Heating Capacity @ 5 Deg: 29100
  • Height: 31.89
  • High Heat: NO
  • Length: 16.14
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 3/8"
  • Maximum Overcurrent Protection (MOCP): 45
  • Maximum Piping Height: 98'
  • Maximum Piping Length: 213'
  • Metering Device: EEV - Electronic Expansion Valve
  • Number Of HVAC Zones: 1
  • OPT Code: 1P38MBRBQ36AA3
  • Phase: Single
  • Prop 65: YES
  • Rated Current Amps (RCA): 23.5
  • Rated Load Amps (RLA): 23.5
  • Refrigerant: R-410A
  • Refrigerant Charge: 7.05 lb
  • SEER: 16.5
  • Stages Cooling: 1
  • Stages Heating: 1
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 5/8"
  • Tier: Performance™
  • Tonnage: 3
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 148.59
  • Width: 37.24

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles 3 Ton Up to 17 SEER Single-Zone Ductless Heat Pump Condensing Unit R-410A (208/230-1-60) requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
