Heat Pump

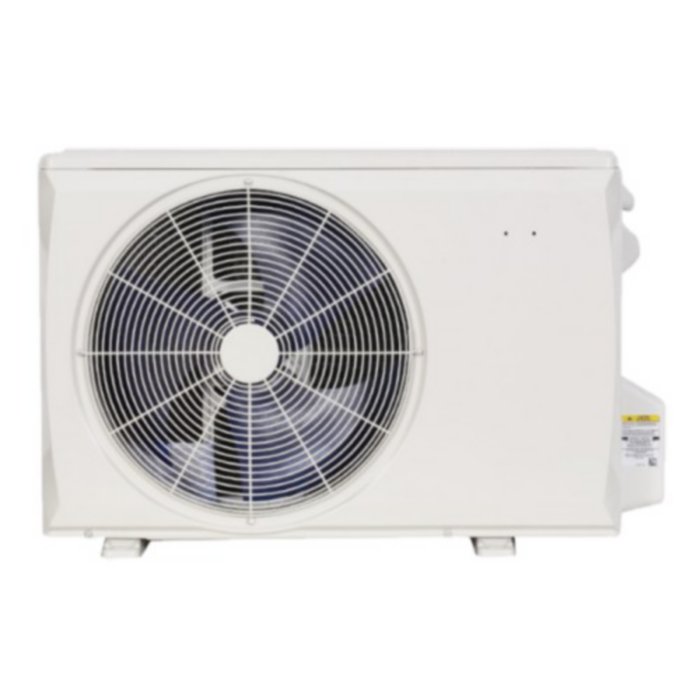

Carrier Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) service and support

Carrier Residential Heat Pump - 38MBRC Heat Pump Repair, maintenance, and replacement planning

Product service snapshot

Carrier Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) service details

Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) is a Carrier®, Bryant®, Payne® heat pump record from the Carrier Enterprise catalog. Catalog model: 38MBRCQ36AA3. Product family: 38MBRC. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

Brand: Carrier
Model or series: Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V)
Equipment type: Heat Pump
Product group: Residential Heat Pump - 38MBRC

Technical snapshot

Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) technical snapshot

Product Specs

Model: 38MBRCQ36AA3
Manufacturer Number: 38MBRCQ36AA3
Vendor Number: 38MBRCQ36AA3
Catalog Brand: Carrier®, Bryant®, Payne®
Product Family: 38MBRC
AHRI Usage: Outdoor
Brand: Carrier®, Bryant®, Payne®
CFM: 2,130
Color: White
Compressor Type: Rotary
Condenser Fan CFM: 2130
Condenser Motor HP: 1/6
Condenser Motor RPM: 1,050
Condenser Motor Speeds: 3
Condenser Motor Type: ECM (Electronically Commutated Motor)
Cooling Capacity: 5,900-41,000
Cooling Rated Capacity Btu/h: 36000
Country Of Origin: CHN
Cubic Measurement: 18.4862
Cycle/Hertz: 60 Hz
EER: 8-9
EER2: 9.7-11.6
Energy Star Rated: NO
HSPF: 10-11.5
Heating Capacity: 9,200-43,000
Heating Capacity @ 5 Deg: 22300
Height: 52.4
High Heat: NO
Length: 16.3
Liquid Line Fitting Type: Flare
Liquid Line Size (OD): 3/8"
Maximum Overcurrent Protection (MOCP): 50
Maximum Piping Height: 98
Maximum Piping Length: 213
Metering Device: EEV - Electronic Expansion Valve
Number Of HVAC Zones: 1
OPT Code: 1P31K2B0000001020244
Phase: Single
Prop 65: YES
Rated Current Amps (RCA): 1.21
Rated Load Amps (RLA): 22
Refrigerant: R-410A
Refrigerant Charge: 6.72
SEER: 16.7
SEER2: 19.2
Sound Level (dBA): 63
Stages Cooling: 1
Stages Heating: 1
Suction Line Fitting Type: Flare
Suction Line Size (OD): 5/8"
Tier: Standard
Tonnage: 3
UPC: See Optical
Voltage: 208-230 VAC
Weight: 254.4
Width: 37.4

Useful troubleshooting details

Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) requests

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) service questions

Can GreenFlow help with Carrier Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) service requests?

Yes. GreenFlow can help collect the right details for Carrier Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V)?

Helpful symptoms include no heat, no cooling, weak airflow, defrost or outdoor icing concerns, auxiliary heat behavior, thermostat issues, short cycling, unusual noise, and whether the request is urgent or planned maintenance.

Is Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) used for residential or commercial properties?

Heat pump requests may come from homes, condos, multifamily properties, managed buildings, and light-commercial spaces depending on the system type and building layout.

What helps schedule Ductless 36000 BTUH Heat Pump Condensing Unit R-410A (230V) service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
