Carrier 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 service and support

Schedule Service Check Availability
Carrier Commercial Rooftop Unit - 40QQ Rooftop Unit Repair, maintenance, and replacement planning

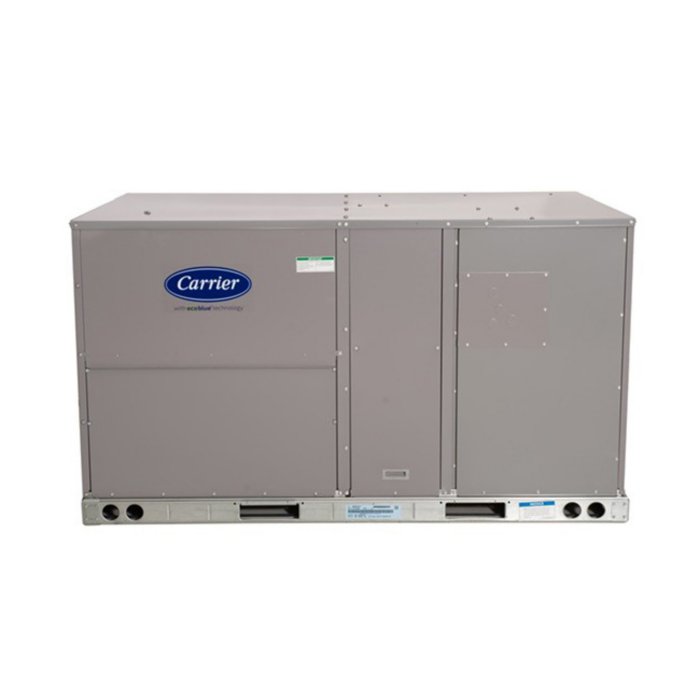

Carrier 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 product image

Product service snapshot

Carrier 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 service details

5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 is a Carrier® rooftop unit record from the Carrier Enterprise catalog. Catalog model: 40QQ-060ABA3-0A0. Product family: 40QQ. Green Flow Solution uses this page for commercial model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

  • Brand: Carrier
  • Model or series: 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60
  • Equipment type: Rooftop Unit
  • Product group: Commercial Rooftop Unit - 40QQ

Technical snapshot

5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 technical snapshot

Product Specs

  • Model: 40QQ-060ABA3-0A0
  • Manufacturer Number: 40QQ-060ABA3-0A0
  • Vendor Number: 40QQ-060ABA3-0A0
  • Catalog Brand: Carrier®
  • Product Family: 40QQ
  • AHRI Usage: Indoor AHU
  • Approvals: UL Listed
  • Blower Motor HP: 1 23/50 BHP
  • Blower Motor RPM: 2,390
  • Blower Motor Speeds: Multiple
  • Brand: Carrier®
  • Color: Gray
  • Cooling Capacity: 60,000
  • Country Of Origin: USA
  • Cubic Measurement: 83.031
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: NO
  • Evaporator Coil Fins Per Inch (FPI): 15
  • Heating Capacity: 66,000
  • Height: 41.375
  • Length: 46.625
  • Liquid Line Size (OD): 3/8"
  • Maximum Overcurrent Protection (MOCP): 80
  • OPT Code: 1P40QQ-060ABA3-0A0
  • Phase: Single
  • Prop 65: YES
  • Refrigerant: R-410A
  • Sound Level (dBA): 66-77
  • Suction Line Size (OD): 5/8"
  • Tonnage: 5
  • Voltage: 208-230 VAC
  • Weight: 401
  • Width: 74.375

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 service questions

What Carrier 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 alarm or error-code details should I share?

Share the exact alarm, fault, or status message shown on the unit controller, thermostat, service app, or building automation system. Photos of the control screen, unit nameplate, and thermostat/BAS screen help the team understand the issue before dispatch.

What should I check before requesting 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 service?

Confirm the thermostat or building schedule, whether one tenant space or multiple zones are affected, recent filter or maintenance history, and whether the RTU is locked out, noisy, short cycling, or not responding. Do not open rooftop panels or reset electrical equipment if it is unsafe.

Why would a 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 run but not heat or cool correctly?

Possible causes include airflow restrictions, dirty filters, economizer or damper issues, sensor or control faults, compressor or reversing-valve issues, defrost problems, refrigerant concerns, electrical faults, or building automation scheduling. A technician needs the full symptom and alarm context to diagnose it safely.

When is a 5 Ton No Heat Variable Refrigerant Flow (VRF) Rooftop R-410A 208/230-1-60 issue urgent?

Treat the request as urgent when no heat or no cooling affects occupied space, an alarm or lockout is active, there is electrical odor, unusual noise, water intrusion, unsafe rooftop access, or repeated tenant comfort complaints. Include business hours and access notes when scheduling.
