Carrier Ductless / Mini Split Ductless Variable Refrigerant Flow (VRF) 5000 Btu High Wall Indoor Unit R-410A

Install QuoteBook ServiceEquipment Quote
Carrier Commercial Ductless / Mini Split - 40VMW Ductless / Mini Split Repair, maintenance, and replacement planning

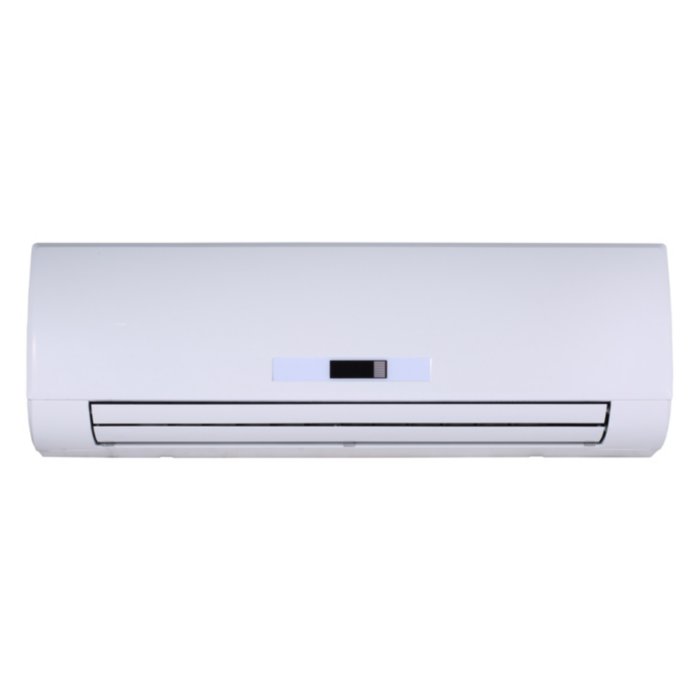

Carrier Ductless Variable Refrigerant Flow (VRF) 5000 Btu High Wall Indoor Unit R-410A product image

Technical Specifications

Product Specs

  • Model: 40VMW005---3
  • Manufacturer Number: 40VMW005---3
  • Vendor Number: 40VMW005---3
  • Catalog Brand: Carrier®
  • Product Family: 40VMW
  • AHRI Usage: Indoor AHU
  • Approvals: ETL Listed; UL Listed
  • Blower Motor Speeds: 3
  • Brand: Carrier®
  • CFM: 245-320
  • Color: White
  • Cooling Capacity: 5,000
  • Country Of Origin: CHN
  • Cubic Measurement: 2.1328
  • Cycle/Hertz: 60 Hz
  • Energy Star Rated: NO
  • Evaporator Coil Fins Per Inch (FPI): 17
  • Heating Capacity: 6,000
  • Height: 11.375
  • Length: 9
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 1/4"
  • Maximum Overcurrent Protection (MOCP): 15
  • Mounting Type: Wall-Mount
  • OPT Code: 1P40VMW005---3
  • Phase: Single
  • Prop 65: YES
  • Refrigerant: R-410A
  • Sound Level (dBA): 31.7-31.7
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 1/2"
  • Tonnage: 0.42
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 28
  • Width: 36

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Ductless Variable Refrigerant Flow (VRF) 5000 Btu High Wall Indoor Unit R-410A requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
