Product Specs

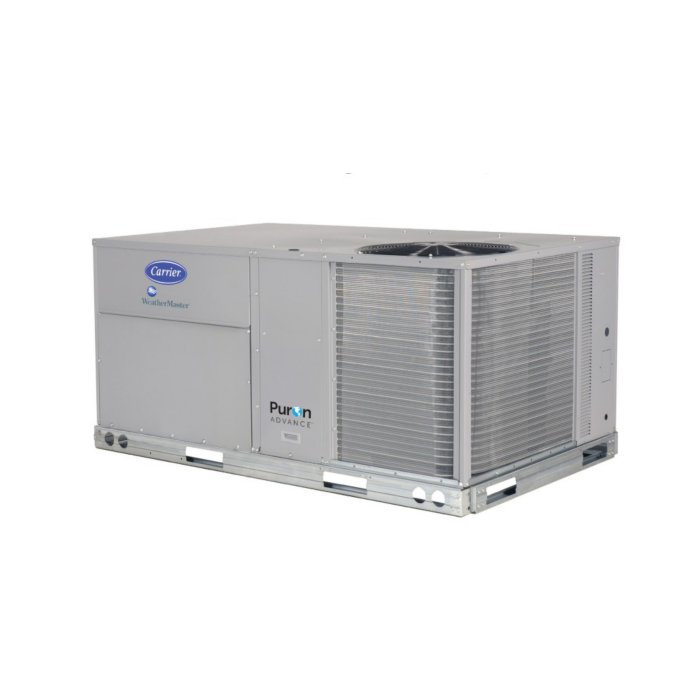

- Model: 48GEEM06A2A5-8M0A0
- Manufacturer Number: 48GEEM06A2A5-8M0A0
- Vendor Number: 48GEEM06A2A5-8M0A0
- Catalog Brand: Carrier®
- Product Family: 48GE
- AHRI Usage: Packaged
- Air Flow Direction: Convertible
- Approvals: AHRI, ASHRAE, ASTM B117, IECC®, ISO 9001:2015, NFPA 90A, OSHA
- BTU Input: 82,000-110,000
- BTU Output: 65,000-88,000
- Blower Motor HP: 1 11/25
- Blower Motor RPM: 239-2,390
- Blower Motor Speeds: 2
- Blower Motor Type: ECM (Electronically Commutated Motor)
- Blower Wheel Diameter: 16 3/5"
- Brand: Carrier®
- CFM: 1,500-2,500
- CFM Heating: 1,250-2,720
- Color: Gray
- Compressor Type: Scroll
- Condenser Coil Fins Per Inch (FPI): 18
- Condenser Coil Metering Device: TXV/TEV - Thermostatic Expansion Valve
- Condenser Fan Blade Diameter: 23
- Condenser Fan Motor Qty: 1
- Condenser Motor HP: 1/3
- Condenser Motor RPM: 1,100-1,200
- Condenser Motor Speeds: Multiple
- Condenser Motor Type: PSC (Permanent Split Capacitor)
- Cooling Capacity: 58,500
- Country Of Origin: MEX
- Cycle/Hertz: 60 Hz
- Drain Connection Size: 3/4"
- Drive Type: Direct
- EER: 12.5
- EER2: 12
- Energy Star Rated: NO
- Evaporator Coil Fins Per Inch (FPI): 15
- Evaporator Coil Metering Device: TXV/TEV - Thermostatic Expansion Valve
- Fuel Type: Natural Gas or LP
- Gas Connection Size: 1/2"
- Gas Connection Type: NPT
- Height: 41.375
- Ignition Type: Direct Spark (DSI)
- Length: 46.625
- Locked Rotor Amps (LRA): 150
- Maximum Overcurrent Protection (MOCP): 60
- Outdoor Air Filter Size (OA) In Inches (W X H X D): 20 x 24 x 1
- Phase: Three
- Prop 65: YES
- Rated Load Amps (RLA): 14
- Refrigerant: R-454B
- Return Air Filter Size (RA) In Inches (W X H X D): (4) 16 x 16 x 2
- Sound Level (dBA): 79
- Stages Cooling: 2
- Stages Heating: 2
- Thermal Efficiency: 80%
- Tier: WeatherMaster®
- Tonnage: 5
- Voltage: 208-230 VAC
- Weight: 600
- Width: 74.375
