Carrier Catalog Product

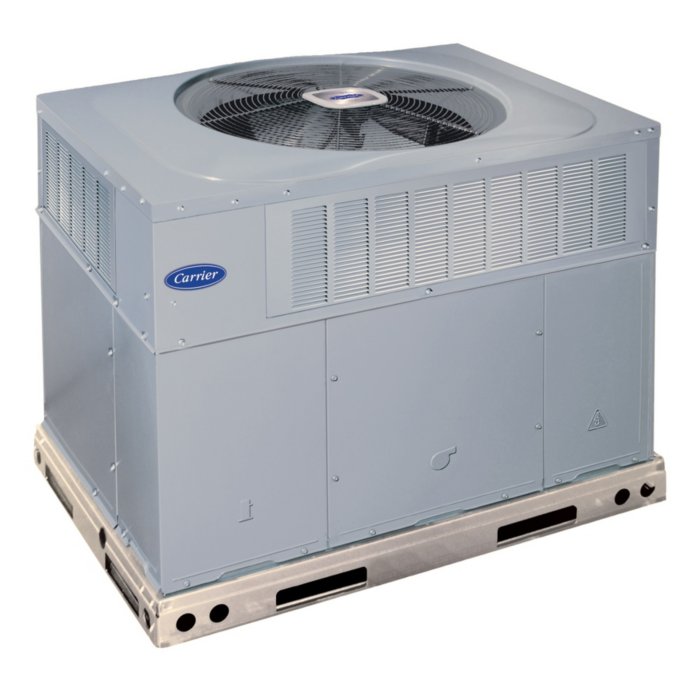

Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit service and support

Carrier Residential Carrier Catalog Product - 48VT-K Carrier Catalog Product Repair, maintenance, and replacement planning

Product service snapshot

Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit service details

Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit is a Carrier® carrier catalog product record from the Carrier Enterprise catalog. Catalog model: 48VT-K481153. Product family: 48VT-K. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

Brand: Carrier
Model or series: Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit
Equipment type: Carrier Catalog Product
Product group: Residential Carrier Catalog Product - 48VT-K

Technical snapshot

Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit technical snapshot

Product Specs

Model: 48VT-K481153
Manufacturer Number: 48VT-K481153
Vendor Number: 48VT-K481153
Catalog Brand: Carrier®
Product Family: 48VT-K
AFUE: 81
AHRI Usage: Packaged
Air Flow Direction: Convertible
Approvals: UL Listed
BTU Input: 115,000
BTU Output: 94,000
Blower Motor HP: 1
Blower Motor Speeds: 5
Blower Motor Type: ECM (Electronically Commutated Motor)
Blower Wheel Diameter: 11"
Blower Wheel Width: 10"
Brand: Carrier®
CFM: 1,600
Color: Gray
Compressor Type: Scroll
Condenser Coil Fins Per Inch (FPI): 21
Condenser Fan Blade Diameter: 26
Condenser Fan CFM: 3500
Condenser Fan Motor Qty: 1
Condenser Motor HP: 1/5
Condenser Motor RPM: 810
Condenser Motor Speeds: 1
Condenser Motor Type: PSC (Permanent Split Capacitor)
Cooling Capacity: 48,000
Country Of Origin: MEX
Cycle/Hertz: 60 Hz
Drain Connection Size: 3/4"
EER2: 10.6
Energy Star Rated: NO
Evaporator Coil Fins Per Inch (FPI): 17
Evaporator Coil Metering Device: TXV/TEV - Thermostatic Expansion Valve
Fuel Type: Natural Gas or LP
Gas Connection Size: 1/2"
Gas Connection Type: NPT
HSPF2: 6.7
Heating Capacity: 25,800-46,000
Height: 55
Ignition Type: Direct Spark (DSI)
Length: 47
Locked Rotor Amps (LRA): 130
Maximum Overcurrent Protection (MOCP): 50
OPT Code: 1P48VT-K481153
Phase: Single
Prop 65: YES
Refrigerant: R-410A
Return Air Filter Size (RA) In Inches (W X H X D): (1) 24 x 16 x 1; (1) 24 x 18 x 1
SEER2: 13.4
Sound Level (dBA): 74
Stages Cooling: 1
Tier: Comfort™
Tonnage: 4
UPC: See Optical
Voltage: 208-230 VAC
Weight: 513
Width: 43

Useful troubleshooting details

Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit requests

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit service questions

Can GreenFlow help with Carrier Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit service requests?

Yes. GreenFlow can help collect the right details for Carrier Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit?

Helpful symptoms include no heat, no cooling, weak airflow, error codes, leaks, short cycling, unusual noise, thermostat behavior, and whether the issue is urgent or planned maintenance.

Is Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit used for residential or commercial properties?

Carrier Catalog Product requests may come from homes, condos, multi-unit properties, offices, managed buildings, and light-commercial spaces depending on the equipment type and application.

What helps schedule Carrier® - 4 Ton 13.4 SEER2 115000 BTUH Residential Packaged HYBRID HEAT® Unit service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
