Carrier Catalog Product ® Comfort™ - 4 Ton 13.4 SEER2 Packaged Air Conditioning Unit R-454B (208/230-3)

Carrier Residential Carrier Catalog Product - 50NL-B Carrier Catalog Product Repair, maintenance, and replacement planning

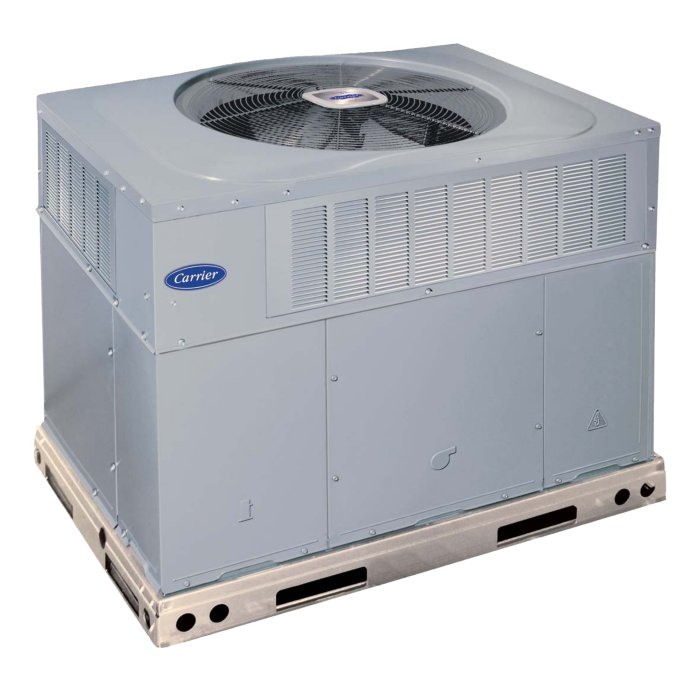

Carrier® Comfort™ - 4 Ton 13.4 SEER2 Packaged Air Conditioning Unit R-454B (208/230-3) product image

Technical Specifications

Product Specs

  • Model: 50NL-B48---5
  • Manufacturer Number: 50NL-B48---5
  • Vendor Number: 50NL-B48---5
  • Catalog Brand: Carrier®
  • Product Family: 50NL-B
  • AHRI Usage: Packaged
  • Air Flow Direction: Downflow / Horizontal
  • Blower Motor HP: 1
  • Blower Motor RPM: 1,075
  • Blower Motor Speeds: Multiple
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 10"
  • Brand: Carrier®
  • CFM: 1,600
  • Color: Gray
  • Compressor Type: Scroll
  • Condenser Coil Fins Per Inch (FPI): 21
  • Condenser Coil Metering Device: Orifice
  • Condenser Fan Blade Diameter: 26
  • Condenser Fan CFM: 3500
  • Condenser Fan Motor Qty: 1
  • Condenser Motor HP: 1/5
  • Condenser Motor RPM: 810
  • Condenser Motor Speeds: 1
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Cooling Capacity: 48,000
  • Country Of Origin: MEX
  • Cycle/Hertz: 60 Hz
  • Drain Connection Size: 3/4"
  • Drive Type: Direct
  • EER2: 11
  • Energy Star Rated: NO
  • Evaporator Coil Fins Per Inch (FPI): 17
  • Evaporator Coil Metering Device: Orifice
  • Height: 51
  • Length: 48.25
  • Locked Rotor Amps (LRA): 123
  • Maximum Overcurrent Protection (MOCP): 35
  • OPT Code: 1P50NL-B48---5
  • Phase: Three
  • Prop 65: YES
  • Rated Load Amps (RLA): 12
  • Refrigerant: R-454B
  • Return Air Filter Size (RA) In Inches (W X H X D): (1) 24 x 18 x 1; (1) 24 x 16 x 1
  • Sound Level (dBA): 69
  • Stages Cooling: 1
  • Tier: Comfort™
  • Tonnage: 4
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 433
  • Width: 44.1875

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Comfort™ - 4 Ton 13.4 SEER2 Packaged Air Conditioning Unit R-454B (208/230-3) requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
