Carrier Heat Pump ® - 2 Ton 13.4 SEER2 Residential Packaged Heat Pump Unit

Install QuoteBook ServiceEquipment Quote
Carrier Residential Heat Pump - 50ZHK Heat Pump Repair, maintenance, and replacement planning

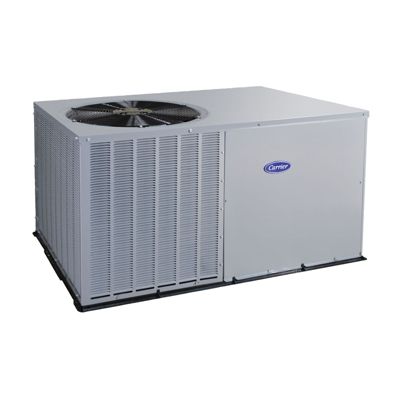

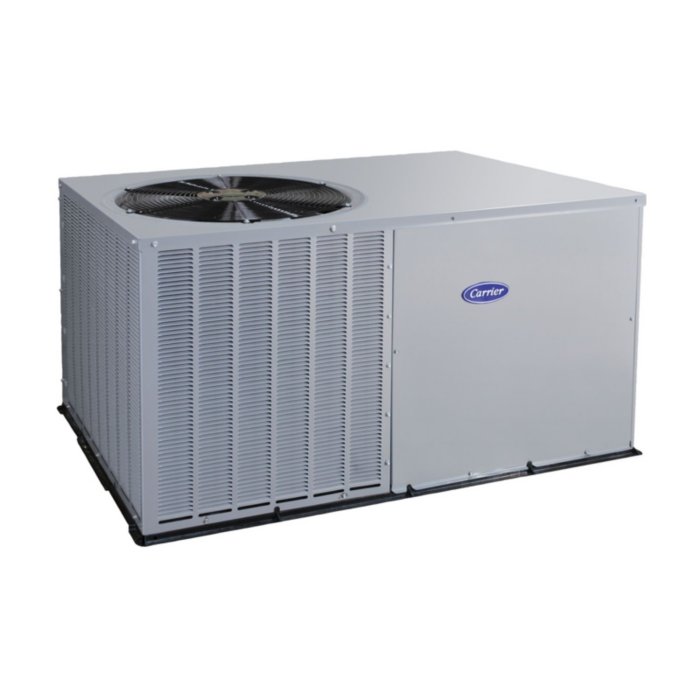

Carrier® - 2 Ton 13.4 SEER2 Residential Packaged Heat Pump Unit product image

Technical Specifications

Product Specs

  • Model: 50ZHK024---3
  • Manufacturer Number: 50ZHK024---3
  • Vendor Number: 50ZHK024---3
  • Catalog Brand: Carrier®
  • Product Family: 50ZHK
  • AHRI Usage: Packaged
  • Air Flow Direction: Horizontal
  • Approvals: UL Listed
  • Blower Motor HP: 1/3
  • Blower Motor Speeds: Multiple
  • Blower Motor Type: PSC (Permanent Split Capacitor)
  • Blower Wheel Diameter: 8"
  • Blower Wheel Width: 11"
  • Brand: Carrier®
  • CFM: 800
  • COP: 2.3
  • Color: Gray
  • Compressor Type: Scroll
  • Condenser Fan Blade Diameter: 20
  • Condenser Fan CFM: 2000
  • Condenser Fan Motor Qty: 1
  • Condenser Motor HP: 1/8
  • Condenser Motor RPM: 825
  • Condenser Motor Speeds: Variable
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Cooling Capacity: 23,600-24,000
  • Cooling Rated Capacity Btu/h: 24000
  • Country Of Origin: USA
  • Cubic Measurement: 28.4514
  • Cycle/Hertz: 60 Hz
  • Drain Connection Size: 3/4"
  • Drive Type: Direct
  • EER: 11.5
  • EER2: 10.6
  • Electric Heat Range [kW]: 3.8-10
  • Energy Star Rated: NO
  • Evaporator Coil Metering Device: Piston
  • HSPF: 8
  • HSPF2: 6.7
  • Heating Capacity: 24,000
  • Height: 30.125
  • Length: 51
  • Locked Rotor Amps (LRA): 61.6
  • Maximum Overcurrent Protection (MOCP): 70
  • OPT Code: 1P50ZHK024---3
  • Phase: Single
  • Prop 65: YES
  • Refrigerant: R-410A
  • Return Air Filter Size (RA) In Inches (W X H X D): 20 x 20 x 1
  • SEER: 14
  • SEER2: 13.4
  • Sound Level (dBA): 72
  • Stages Cooling: 1
  • Tier: Comfort™
  • Tonnage: 2
  • Voltage: 208-230 VAC
  • Weight: 253
  • Width: 32

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® - 2 Ton 13.4 SEER2 Residential Packaged Heat Pump Unit requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
