Carrier Gas Furnace ® Performance™ - 80% AFUE 90000 BTUH Two-Stage, Variable 25-Speed,Non-Communicating, Non-Condensing, Gas Furnace

Request ServiceEquipment Quote

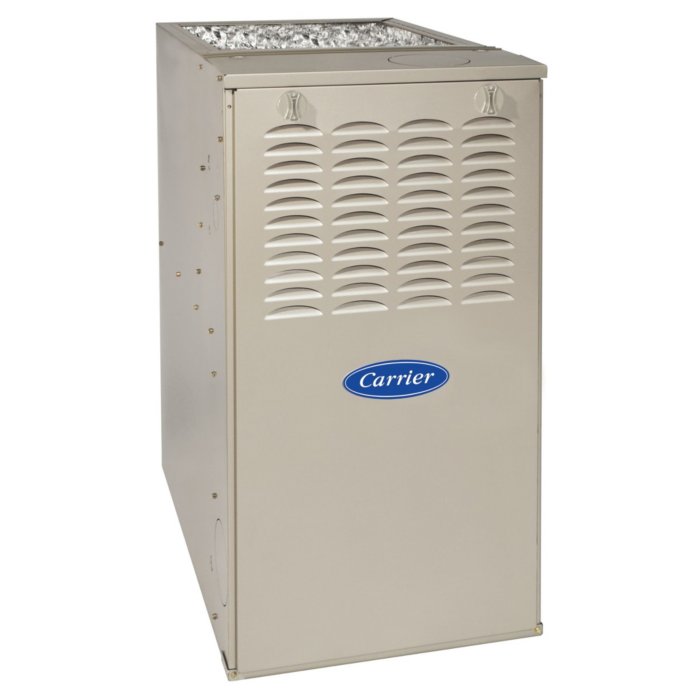

 Carrier® Performance™ - 80% AFUE 90000 BTUH Two-Stage, Variable 25-Speed,Non-Communicating, Non-Condensing, Gas Furnace product image

Technical Specifications

Product Specs

  • Model: 58TP0B090V17--16
  • Manufacturer Number: 58TP0B090V17--16
  • Vendor Number: 58TP0B090V17--16
  • Catalog Brand: Carrier®
  • Product Family: 58TP
  • AFUE: 80
  • AHRI Usage: Indoor AHU
  • Air Flow Direction: Multi-Position
  • BTU Input: 58,000-88,000
  • BTU Output: 47,000-71,000
  • Blower Motor HP: 1/2
  • Blower Motor RPM: 1,200
  • Blower Motor Speeds: Variable
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 10"
  • Blower Wheel Width: 10"
  • Brand: Carrier®
  • CFM: 1,600
  • CFM Heating: 1,005-1,380
  • Cabinet Width: 17.5
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 50/60 Hz
  • Energy Star Rated: YES
  • FER Compliant: NO
  • Filter Size: 16" X 25" X 3/4"
  • Fuel Type: Natural Gas
  • Full Load Amps: 6.7
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 33.3333
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29
  • Maximum Overcurrent Protection (MOCP): 15
  • OPT Code: 1P58TP0B090V17--16
  • Phase: Single
  • Prop 65: YES
  • Stages Heating: 2
  • Tier: Performance™
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 136
  • Width: 17.5

Certification match

AHRI certificates

View All

Showing 10 of 175 certificates

ENERGY STAR certified HP - Split System

AHRI 214197687

AHRI 214197687 identifies a HP - Split System from Carrier with outdoor unit 27SCA524A**30* and indoor unit CAA**2517AM*.
ENERGY STAR certified HP - Split System

AHRI 214197688

AHRI 214197688 identifies a HP - Split System from Carrier with outdoor unit 27SPA624A**30* and indoor unit CAA**2517AM*.
ENERGY STAR certified HP - Split System

AHRI 214197689

AHRI 214197689 identifies a HP - Split System from Carrier with outdoor unit GH5SAN524**AA* and indoor unit CAA**2517AM*.
ENERGY STAR certified HP - Split System

AHRI 214200386

AHRI 214200386 identifies a HP - Split System from Carrier with outdoor unit 27SCA524A**30* and indoor unit CAA**3717AM*.
ENERGY STAR certified HP - Split System

AHRI 214200387

AHRI 214200387 identifies a HP - Split System from Carrier with outdoor unit 27SPA624A**30* and indoor unit CAA**3717AM*.
ENERGY STAR certified HP - Split System

AHRI 214200388

AHRI 214200388 identifies a HP - Split System from Carrier with outdoor unit GH5SAN524**AA* and indoor unit CAA**3717AM*.
ENERGY STAR certified HP - Split System

AHRI 214202043

AHRI 214202043 identifies a HP - Split System from Carrier with outdoor unit 27SCA524A**30* and indoor unit CAA**3721AM*.
ENERGY STAR certified HP - Split System

AHRI 214202044

AHRI 214202044 identifies a HP - Split System from Carrier with outdoor unit 27SPA624A**30* and indoor unit CAA**3721AM*.
ENERGY STAR certified HP - Split System

AHRI 214202045

AHRI 214202045 identifies a HP - Split System from Carrier with outdoor unit GH5SAN524**AA* and indoor unit CAA**3721AM*.
ENERGY STAR certified HP - Split System

AHRI 214205201

AHRI 214205201 identifies a HP - Split System from Carrier with outdoor unit 27SCA524A**30* and indoor unit CVAVA3117XMA*.
Loading more

Service planning

How GreenFlow handles Carrier® Performance™ - 80% AFUE 90000 BTUH Two-Stage, Variable 25-Speed,Non-Communicating, Non-Condensing, Gas Furnace requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
