Carrier Heat Pump 1.5 Ton 16 SEER Residential Heat Pump Condensing Unit

Install QuoteBook ServiceEquipment Quote
Carrier Residential Heat Pump - CH16NA Heat Pump Repair, maintenance, and replacement planning

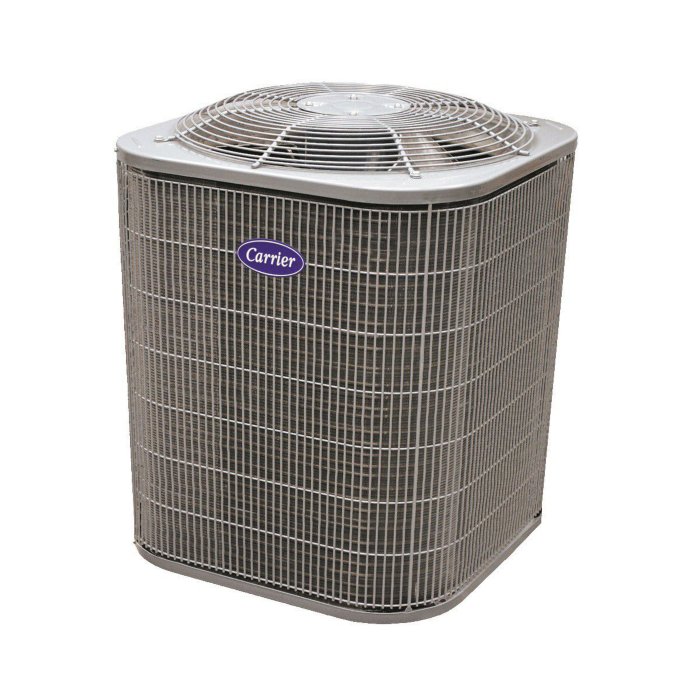

Carrier 1.5 Ton 16 SEER Residential Heat Pump Condensing Unit product image

Technical Specifications

Product Specs

  • Model: CH16NA018P0G
  • Manufacturer Number: CH16NA018P0G
  • Vendor Number: CH16NA018P0G
  • Catalog Brand: Carrier®
  • Product Family: CH16NA
  • AHRI Usage: Outdoor
  • Approvals: UL Listed
  • Brand: Carrier®
  • CFM: 2,233
  • Color: Gray
  • Compressor Type: Scroll
  • Condenser Coil Fins Per Inch (FPI): 20
  • Condenser Fan Blade Diameter: 24
  • Condenser Fan CFM: 2233
  • Condenser Fan Discharge: Vertical
  • Condenser Fan Motor Qty: 1
  • Condenser Motor HP: 1/12
  • Condenser Motor RPM: 800
  • Condenser Motor Speeds: Variable
  • Condenser Motor Type: PSC (Permanent Split Capacitor)
  • Cooling Capacity: 18,000
  • Cooling Rated Capacity Btu/h: 18000
  • Country Of Origin: MEX
  • Cubic Measurement: 19.7361
  • Cycle/Hertz: 60 Hz
  • EER: 13
  • Energy Star Rated: YES
  • Full Load Amps: 0.5
  • HSPF: 8.2
  • Heating Capacity: 10,800
  • Height: 35.0625
  • Inverter: NO
  • Length: 31.1875
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Locked Rotor Amps (LRA): 56.3
  • Maximum Overcurrent Protection (MOCP): 20
  • Maximum Piping Length: 250'
  • OPT Code: 1PCH16NA01800G
  • Phase: Single
  • Prop 65: YES
  • Rated Load Amps (RLA): 10.5
  • Refrigerant: R-410A
  • SEER: 16
  • Sound Level (dBA): 68
  • Stages Cooling: 1
  • Stages Heating: 1
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 5/8"
  • Tier: Sentry
  • Tonnage: 1.5
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 167
  • Width: 31.1875

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles 1.5 Ton 16 SEER Residential Heat Pump Condensing Unit requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
