Carrier Catalog Product

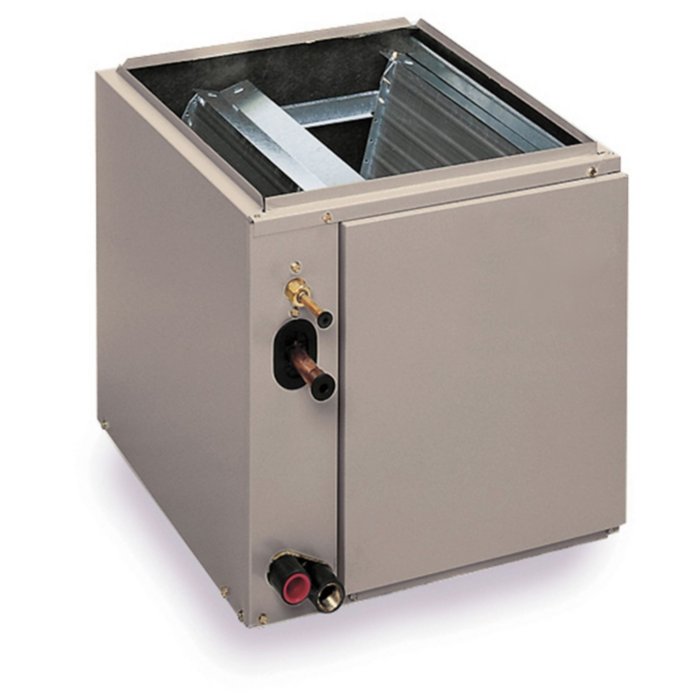

Carrier 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) service and support

Carrier Residential Carrier Catalog Product - CNPVP Carrier Catalog Product Repair, maintenance, and replacement planning

Product service snapshot

Carrier 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) service details

5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) is a Carrier®, Bryant®, Payne® carrier catalog product record from the Carrier Enterprise catalog. Catalog model: CNPVP6124ALA. Product family: CNPVP. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

Brand: Carrier
Model or series: 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum)
Equipment type: Carrier Catalog Product
Product group: Residential Carrier Catalog Product - CNPVP

Technical snapshot

5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) technical snapshot

Product Specs

Model: CNPVP6124ALA
Manufacturer Number: CNPVP6124ALA
Vendor Number: CNPVP6124ALA
Catalog Brand: Carrier®, Bryant®, Payne®
Product Family: CNPVP
AHRI Usage: Indoor Coil
Air Flow Direction: Upflow / Downflow
Approvals: UL Listed; UL Recognized
Brand: Carrier®, Bryant®, Payne®
CFM: 1,600-2,400
Cabinet Width: 24
Cased: YES
Coil Fin Material: Aluminum
Coil Pipe Material: Copper
Coil Shape Designation: N-Coil
Coil Type: Cased
Cooling Capacity: 6,000-33,200
Cooling Rated Capacity Btu/h: 61000
Corrosion Protected Coil: NO
Country Of Origin: MEX
Cubic Measurement: 9.6827
Dimensional Weight: 121
Drain Connection Quantity: 2
Drain Connection Size: 3/4"
Height: 32.4375
Length: 21
Liquid Line Fitting Type: Sweat or Braze
Liquid Line Size (OD): 3/8"
Metering Device: TXV/TEV - Thermostatic Expansion Valve
OPT Code: 1PCNPVP6124ALA
Prop 65: NO
Refrigerant: R-410A
Suction Line Fitting Type: Sweat or Braze
Suction Line Size (OD): 7/8"
Tier: Standard
Tonnage: 5
UOM: EA
UPC: See Optical
Weight: 83.5
Width: 24.5625

Useful troubleshooting details

Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) requests

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) service questions

Can GreenFlow help with Carrier 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) service requests?

Yes. GreenFlow can help collect the right details for Carrier 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum)?

Helpful symptoms include no heat, no cooling, weak airflow, error codes, leaks, short cycling, unusual noise, thermostat behavior, and whether the issue is urgent or planned maintenance.

Is 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) used for residential or commercial properties?

Carrier Catalog Product requests may come from homes, condos, multi-unit properties, offices, managed buildings, and light-commercial spaces depending on the equipment type and application.

What helps schedule 5 Ton Evaporator N Coil Cased Vertical Upflow / Downflow Painted 24" Width R-410A (Aluminum) service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
