Carrier 2 Ton Geothermal Heat Pump Vertical R-410A service and support

Schedule Service Check Availability
Carrier Residential Heat Pump - GP Heat Pump Repair, maintenance, and replacement planning

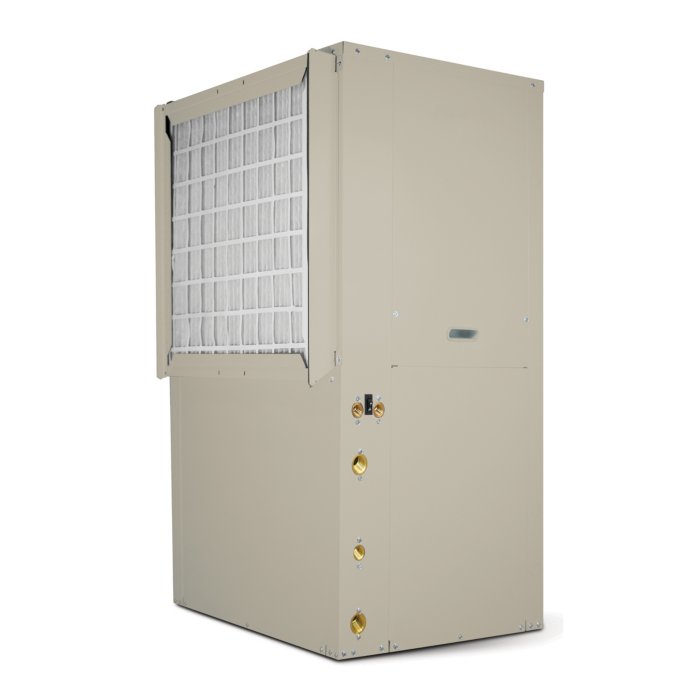

Carrier 2 Ton Geothermal Heat Pump Vertical R-410A product image

Product service snapshot

Carrier 2 Ton Geothermal Heat Pump Vertical R-410A service details

2 Ton Geothermal Heat Pump Vertical R-410A is a Carrier®, Bryant® heat pump record from the Carrier Enterprise catalog. Catalog model: GP024VTLCDET1XX1. Product family: GP. Green Flow Solution uses this page for residential model identification, service planning, maintenance conversations, repair diagnostics, and replacement matching.

  • Brand: Carrier
  • Model or series: 2 Ton Geothermal Heat Pump Vertical R-410A
  • Equipment type: Heat Pump
  • Product group: Residential Heat Pump - GP

Technical snapshot

2 Ton Geothermal Heat Pump Vertical R-410A technical snapshot

Product Specs

  • Model: GP024VTLCDET1XX1
  • Manufacturer Number: GP024VTLCDET1XX1
  • Vendor Number: GP024VTLCDET1XX1
  • Catalog Brand: Carrier®, Bryant®
  • Product Family: GP
  • AHRI Usage: Packaged
  • Air Flow Direction: Vertical
  • Approvals: ETL Listed; UL Listed; UL Recognized
  • Blower Motor HP: 1/3
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 9"
  • Blower Wheel Width: 7"
  • Brand: Carrier®, Bryant®
  • CFM: 650-900
  • CFM Heating: 900
  • COP: 4.6-5
  • Color: Beige
  • Compressor Type: Scroll
  • Cooling Capacity: 26,000-29,000
  • Cooling Rated Capacity Btu/h: 24000
  • Country Of Origin: USA
  • Cubic Measurement: 15.2852
  • Cycle/Hertz: 60 Hz
  • Dimensional Weight: 194
  • Drain Connection Size: 3/4"
  • EER: 16-24
  • Energy Star Rated: YES
  • Full Load Amps: 2.8
  • Heating Capacity: 25,000-30,000
  • Height: 47.25
  • Length: 26
  • Locked Rotor Amps (LRA): 58.3
  • Metering Device: TXV/TEV - Thermostatic Expansion Valve
  • OPT Code: 1PGP024VTLCDET1XX1
  • Phase: Single
  • Prop 65: YES
  • Rated Load Amps (RLA): 11.7
  • Refrigerant: R-410A
  • Return Air Filter Size (RA) In Inches (W X H X D): 24 x 24 x 1
  • Stages Cooling: 2
  • Stages Heating: 2
  • Tonnage: 2
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 290
  • Width: 21.5

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles 2 Ton Geothermal Heat Pump Vertical R-410A requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.

2 Ton Geothermal Heat Pump Vertical R-410A service questions

Can GreenFlow help with Carrier 2 Ton Geothermal Heat Pump Vertical R-410A service requests?

Yes. GreenFlow can help collect the right details for Carrier 2 Ton Geothermal Heat Pump Vertical R-410A service requests, including the model, symptoms, equipment age, building type, access notes, photos, and timing.

What symptoms should I mention for 2 Ton Geothermal Heat Pump Vertical R-410A?

Helpful symptoms include no heat, no cooling, weak airflow, defrost or outdoor icing concerns, auxiliary heat behavior, thermostat issues, short cycling, unusual noise, and whether the request is urgent or planned maintenance.

Is 2 Ton Geothermal Heat Pump Vertical R-410A used for residential or commercial properties?

Heat pump requests may come from homes, condos, multifamily properties, managed buildings, and light-commercial spaces depending on the system type and building layout.

What helps schedule 2 Ton Geothermal Heat Pump Vertical R-410A service faster?

Share the exact model and serial number if available, clear photos of the equipment and surrounding access area, current symptoms, recent maintenance history, and whether the request is repair, maintenance, or replacement planning.
