Carrier Air Handler ® Toshiba Ductless Variable Flow (VRF) 60000 Btu Indoor Unit Vertical Air Handler (208/230-1-60)

Install QuoteBook ServiceEquipment Quote
Carrier Commercial Air Handler - MMD Air Handler Repair, maintenance, and replacement planning

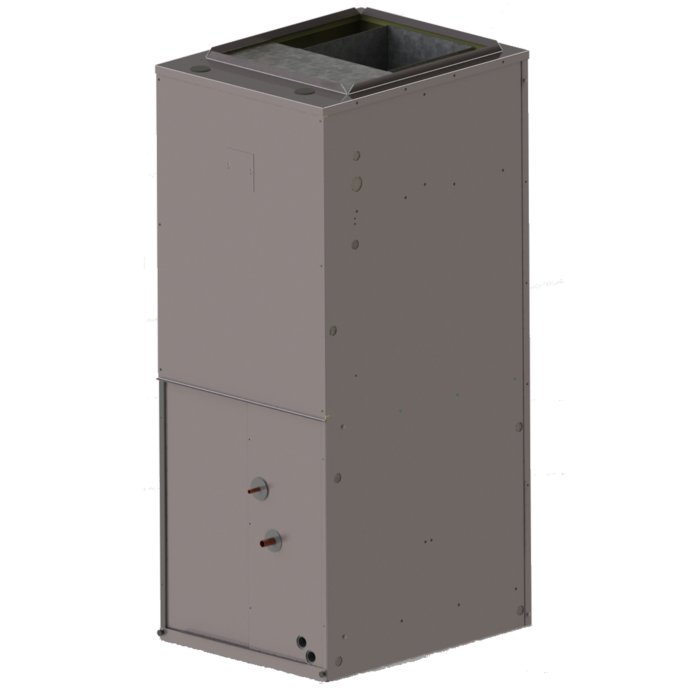

Carrier® Toshiba Ductless Variable Flow (VRF) 60000 Btu Indoor Unit Vertical Air Handler (208/230-1-60) product image

Technical Specifications

Product Specs

  • Model: MMD-AP0600VHG2UL
  • Manufacturer Number: MMD-AP0600VHG2UL
  • Vendor Number: MMD-AP0600VHG2UL
  • Catalog Brand: Toshiba Carrier
  • Product Family: MMD
  • AHRI Usage: Indoor AHU
  • Approvals: ETL Listed
  • Blower Motor HP: 1
  • Blower Motor Speeds: 3
  • Brand: Toshiba Carrier
  • CFM: 2,000
  • Color: Gray
  • Cooling Capacity: 60,000
  • Country Of Origin: JPN
  • Cubic Measurement: 25.381
  • Cycle/Hertz: 60 Hz
  • Dimensional Weight: 311
  • Energy Star Rated: NO
  • Heating Capacity: 67,000
  • Height: 57.875
  • Length: 31.25
  • Liquid Line Fitting Type: Sweat or Braze
  • Liquid Line Size (OD): 3/8"
  • Maximum Overcurrent Protection (MOCP): 15
  • Mounting Type: Concealed Ducted
  • OPT Code: 1PMMD-AP0600VHG2UL
  • Phase: Single
  • Prop 65: YES
  • Refrigerant: R-410A
  • Sound Level (dBA): 46.98-51.01
  • Suction Line Fitting Type: Sweat or Braze
  • Suction Line Size (OD): 5/8"
  • Tonnage: 5
  • UOM: EA
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 253
  • Width: 24.25

Useful troubleshooting details

  • Confirm the exact model number, serial number, installed equipment type, and site voltage before service or replacement planning.
  • Match replacement equipment and accessories against current Carrier compatibility requirements, refrigerant type, capacity, airflow, and local code requirements.

Service planning

How GreenFlow handles Carrier® Toshiba Ductless Variable Flow (VRF) 60000 Btu Indoor Unit Vertical Air Handler (208/230-1-60) requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
