Comfortmaker C5H3V36*K*AAA*

Category
Air-source heat pump
Series
SoftSound 23 VS Heat Pump
Model record
Model pattern
Certifications
1128 linked

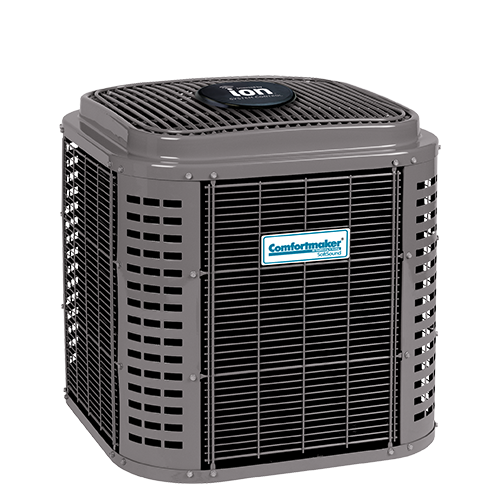

Comfortmaker C5H3V36*K*AAA* product image

Canonical product data

Specifications

Product Type
HP - Split System
Compressor Staging
Continuously variable
Connected Capable
No
Cooling Capacity (Mode: cooling)
32200 Btu/h
Eer2 (Mode: cooling)
11 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
31000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
27200 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
1.98
Hspf2 (Mode: heating)
9.5 Btu/(W.h)
Refrigerant With Gwp Claim
R-454B (GWP:470 | Lower GWP)
Seer2 (Mode: cooling)
19.5 Btu/(W.h)

Matched systems

Certificates

564 verified catalog relationships.

Search AHRI
ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215931500

AHRI 215931500 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit FCMA5B48L0C*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932039

AHRI 215932039 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932049

AHRI 215932049 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932059

AHRI 215932059 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932069

AHRI 215932069 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932079

AHRI 215932079 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932089

AHRI 215932089 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.

ENERGY STAR certified · Mass Save® equipment listed HP - Split System

AHRI 215932099

AHRI 215932099 identifies a HP - Split System from Comfortmaker with outdoor unit C5H3V36*K*AAA* and indoor unit EA*5X36M17A*+WALLCON.
