Air-source heat pump

Back to Concord products

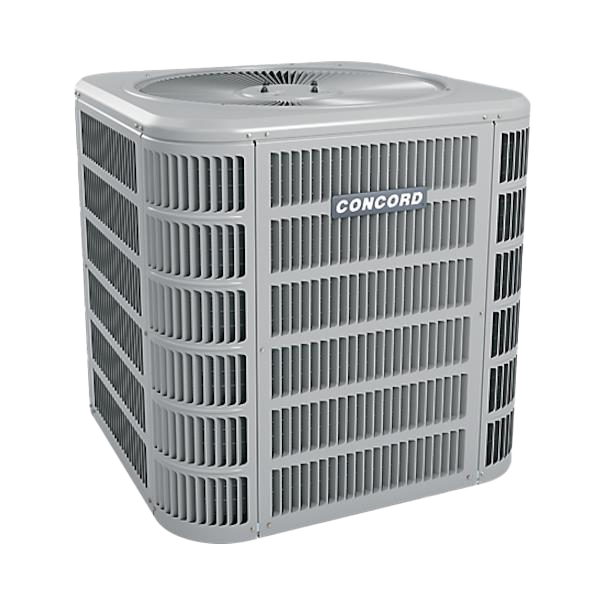

Concord 4DHP2S12S-1L

Request Service Equipment Quote

Category: Air-source heat pump
Series: 4DH SERIES
Model record: Exact model
Certifications: 2 linked

Canonical product data

Specifications

Product Type: HP - Mini or Multi Split
Compressor Staging: Continuously variable
Connected Capable: No
Cooling Capacity (Mode: cooling): 12000 Btu/h
Eer2 (Mode: cooling): 12.8 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 6800 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 12000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 8400 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 2.16
Hspf2 (Mode: heating): 10 Btu/(W.h)
Refrigerant With Gwp Claim: R-410A (GWP:2088)
Seer2 (Mode: cooling): 23.5 Btu/(W.h)
