GE Appliances Heat pump condensing unit NS18H24HA5

Schedule Service Check Availability
GE Appliances GE Appliances AHRI Outdoor - Connect Series Side-Discharge Inverter Heat Pump Heat pump condensing unit Repair, maintenance, and replacement planning

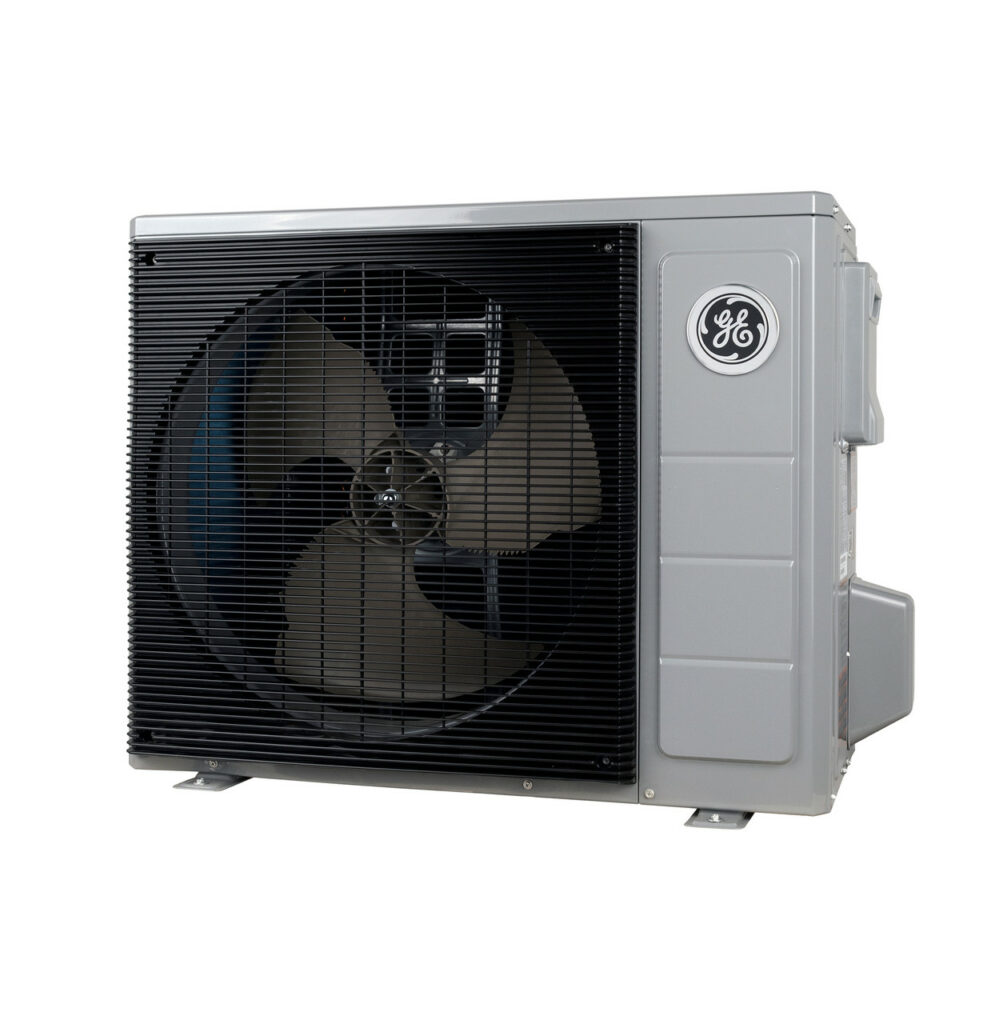

GE Appliances NS18H24HA5 product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: NS18H24HA5***
  • AHRI records represented: 303
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.9833333333333334
  • AHRI refrigerant: R-454B
  • Verified catalog model: NS18H24HA5***
  • Verified product family: Connect Series Side-Discharge Inverter Heat Pump
  • Verified catalog brand: GE Appliances
  • Verified model: NS18H24HA5
  • AHRI model/pattern: NS18H24HA5***
  • Product family: Connect Series Side-Discharge Inverter Heat Pump
  • Nominal capacity: 2 ton
  • Cooling rated capacity: 24,000 BTU/Hr
  • SEER: 18 when paired with NAM24V1TA5S
  • SEER2: 18
  • EER: 12 when paired with NAM24V1TA5S
  • HSPF rating: 10 when paired with NAM24V1TA5S
  • Compressor type: Inverter
  • Refrigerant: R454B
  • Dimensions: 30.13 H x 40.19 W x 17.13 D
  • Net weight: 134.5 lb
  • Approximate shipping weight: 176.4 lb
  • Parts warranty: limited 5-year entire appliance; limited 10-year entire appliance with registration
  • Cold-climate heating down to -22F
  • Side-discharge cabinet for tight-clearance installations
  • 24V thermostat compatible
  • ENERGY STAR certified Connect Series family
  • Official product page: https://www.geappliancesairandwater.com/appliance/2-Ton-Connect-Series-Side-Discharge-Inverter-Heat-Pump-NS18H24HA5
  • Specification guide: https://images.salsify.com/image/upload/s--bf4Uhd2C--/izuhtmuqqay9z9lkiua5.pdf
  • Installation instructions: https://images.salsify.com/image/upload/s--yAjmOoMk--/xapwmzc18ew67wyh8rkn.pdf

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 216743556

AHRI 216743556 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC30BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743557

AHRI 216743557 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC30BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743558

AHRI 216743558 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC30BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743559

AHRI 216743559 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC30BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743560

AHRI 216743560 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC36BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743561

AHRI 216743561 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC36BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743562

AHRI 216743562 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC36BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743563

AHRI 216743563 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCUC36BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743564

AHRI 216743564 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCHC24BT5****+TDR.
Eligible Central HP <5.4 tons

AHRI 216743565

AHRI 216743565 identifies a Mass Save qualified Central HP <5.4 tons from GE Appliances with outdoor unit NS18H24HA5*** and indoor unit NCHC24BT5****+TDR.
Loading more

Service planning

How GreenFlow handles NS18H24HA5 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
