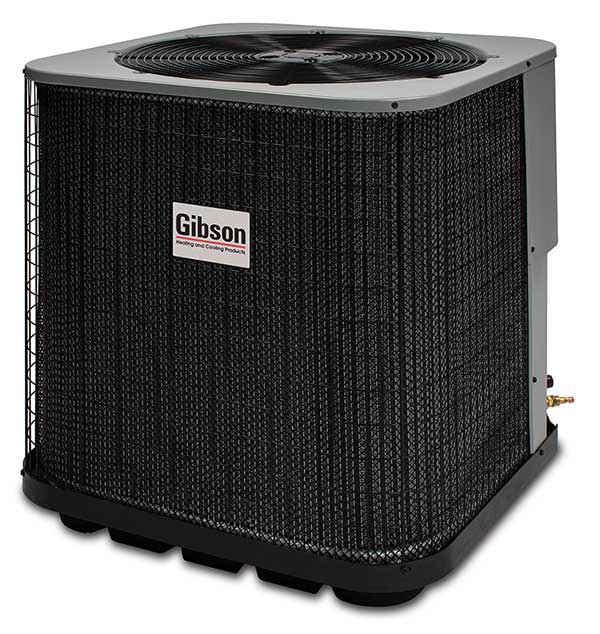

Air-source heat pump
Gibson FSH4BF5M2SX48K
- Category
- Air-source heat pump
- Series
- GIBSON FSH4BF SERIES
- Model record
- Exact model
- Certifications
- 3 linked
Canonical product data
Specifications
- Product Type
- HP - Split System
- Compressor Staging
- Two-stage
- Connected Capable
- No
- Cooling Capacity (Mode: cooling)
- 45500 Btu/h
- Eer2 (Mode: cooling)
- 11.7 Btu/(W.h)
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
- 28000 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
- 46000 Btu/h
- Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 23400 Btu/h
- Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
- 1.75
- Hspf2 (Mode: heating)
- 8 Btu/(W.h)
- Refrigerant With Gwp Claim
- R-454B (GWP:470 | Lower GWP)
- Seer2 (Mode: cooling)
- 16 Btu/(W.h)
AHRI 217194123
- Brand
- Frigidaire
- Outdoor model
- FSH4BF5M2SX48K
- Indoor model
- B65VMMX3648K*C
AHRI 217196672
- Brand
- Frigidaire
- Outdoor model
- FSH4BF5M2SX48K
- Indoor model
- C75B(A,H)MX4860C*C
- Furnace model
- FG7T(*)-V(*)C(*)
AHRI 217196673
- Brand
- Frigidaire
- Outdoor model
- FSH4BF5M2SX48K
- Indoor model
- C75B(A,H)MX4860C*D
- Furnace model
- FG7T(*)-V(*)D(*)
AHRI 217447223
- Brand
- Gibson
- Outdoor model
- FSH4BF5M2SX48K
- Indoor model
- B65VMMX3648K*C
AHRI 217447258
- Brand
- Gibson
- Outdoor model
- FSH4BF5M2SX48K
- Indoor model
- C75B(A,H)MX4860C*C
- Furnace model
- FG7T(*)-V(*)C(*)
AHRI 217447259
- Brand
- Gibson
- Outdoor model
- FSH4BF5M2SX48K
- Indoor model
- C75B(A,H)MX4860C*D
- Furnace model
- FG7T(*)-V(*)D(*)
