Air-source heat pump

Back to Johnson Controls products

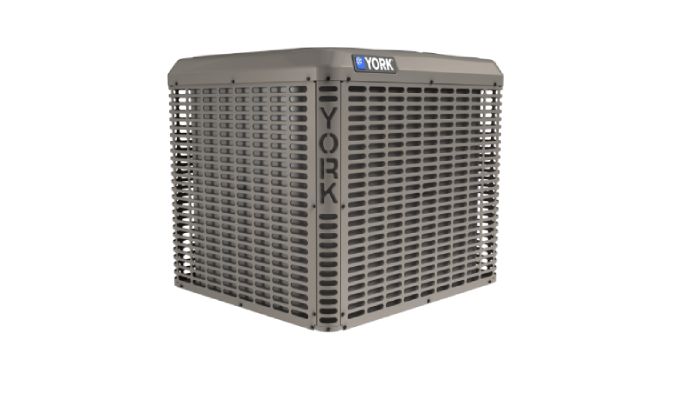

Johnson Controls PHE6B4824

Request Service Equipment Quote

Category: Air-source heat pump
Series: LX SERIES
Model record: Exact model
Certifications: 1 linked

Canonical product data

Specifications

Product Type: HP - Single Package
Compressor Staging: Two-stage
Connected Capable: No
Cooling Capacity (Mode: cooling): 46500 Btu/h
Eer2 (Mode: cooling): 12 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 45500 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 30200 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 24000 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 2.2
Hspf2 (Mode: heating): 7.2 Btu/(W.h)
Refrigerant With Gwp Claim: R-410A (GWP:2088)
Seer2 (Mode: cooling): 15.2 Btu/(W.h)
