Evaporator coil

Back to Kenmore products

Kenmore Evaporator coil EVD5X37M21A*

Schedule Service Check Availability
Kenmore Kenmore AHRI Indoor - EVD5X cased V evaporator coil Evaporator coil Repair, maintenance, and replacement planning

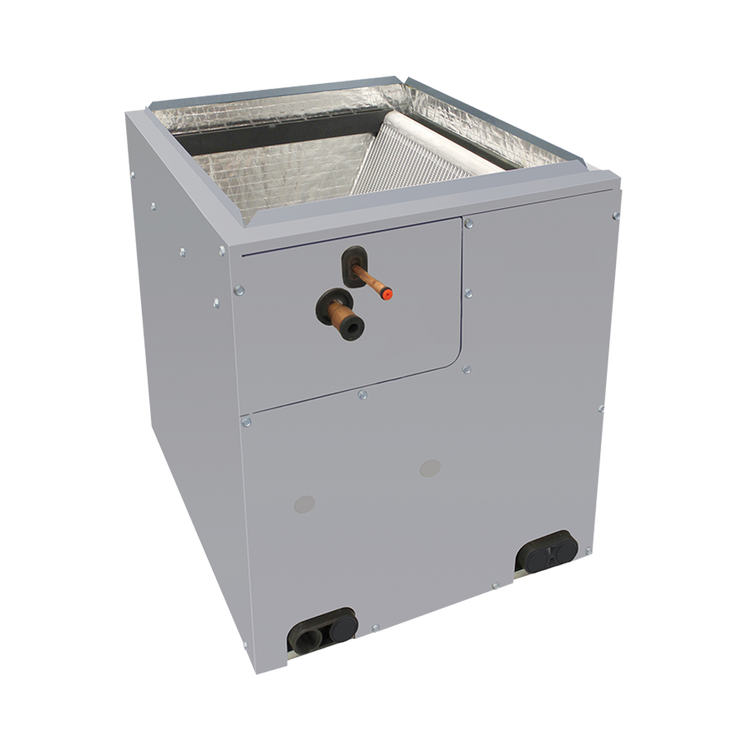

Kenmore EVD5X37M21A* product image

Technical Specifications

Product Specs

  • AHRI unit role: Indoor
  • AHRI model/pattern: EVD5X37M21A*+WALLCON
  • AHRI records represented: 50
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.95
  • AHRI refrigerant: R-454B
  • Verified catalog model: EVD5X37M21A*+WALLCON
  • Verified product family: EVD5X cased V evaporator coil
  • Verified catalog brand: Kenmore
  • Verified ENERGY STAR dataset: ENERGY STAR Certified Heat Pumps
  • ENERGY STAR partner: Carrier Corporation
  • ENERGY STAR outdoor brand: Kenmore
  • ENERGY STAR series: Deluxe 23 VS Heat Pump
  • ENERGY STAR outdoor model: B5H3V24*K*AAA*
  • ENERGY STAR indoor model: EVD5X37M21A*+WALLCON
  • ENERGY STAR furnace model: *80CSU0401712B*
  • Matched-system SEER2: 22.00
  • Matched-system EER2: 13.50
  • Matched-system HSPF2: 9.50
  • Matched-system cooling capacity: 23,400 BTU/h
  • Matched-system heating capacity at 47F: 27,400 BTU/h
  • Matched-system heating capacity at 17F: 25,800 BTU/h
  • Compressor staging: Continuously variable
  • Refrigerant: R-454B (GWP:470 | Lower GWP)
  • ENERGY STAR certified date: 2026-05-12
  • ENERGY STAR source dataset: https://data.energystar.gov/d/83eb-xbyy
  • Carrier-family public product page: https://www.airquestcomfort.com/en/us/products/evaporator-coils/evd5x
  • Verified Carrier-family model family: EVD5X
  • AHRI indoor model/pattern: EVD5X37M21A*+WALLCON
  • Nominal capacity: 3 ton
  • Nominal cooling capacity: 37,000 BTU nominal cooling capacity
  • Cabinet width: 21 in.
  • Configuration: cased V coil with Power-V evaporator coil design
  • Application: matched indoor evaporator coil for air conditioner or heat pump systems

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 218408830

AHRI 218408830 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408838

AHRI 218408838 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408846

AHRI 218408846 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408854

AHRI 218408854 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408862

AHRI 218408862 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408870

AHRI 218408870 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408878

AHRI 218408878 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408886

AHRI 218408886 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408894

AHRI 218408894 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Eligible Central HP <5.4 tons

AHRI 218408902

AHRI 218408902 identifies a Mass Save qualified Central HP <5.4 tons from KENMORE with outdoor unit B5H3V24*K*AAA* and indoor unit EVD5X37M21A*+WALLCON.
Loading more

Service planning

How GreenFlow handles EVD5X37M21A* requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
