Air-source heat pump

Back to Lennox products

Lennox EL16KP1-048-230A**

Category
Air-source heat pump
Series
ELITE EL16KP1 Series
Model record
Model pattern
Certifications
48 linked

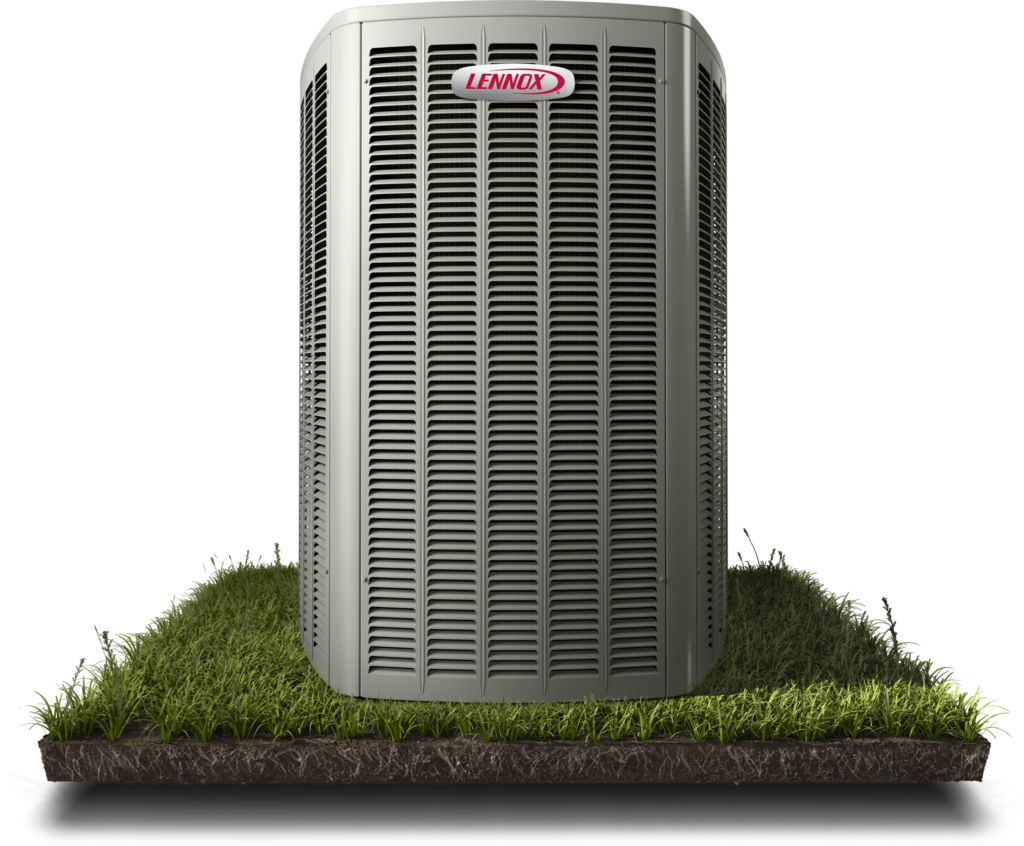

Lennox EL16KP1-048-230A** product image

Canonical product data

Specifications

Product Type
HP - Split System
Compressor Staging
Single stage
Connected Capable
No
Cooling Capacity (Mode: cooling)
48000 Btu/h
Eer2 (Mode: cooling)
13 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF)
46000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF)
29800 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF)
24000 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF)
2.14
Hspf2 (Mode: heating)
7.8 Btu/(W.h)
Refrigerant With Gwp Claim
R-454B (GWP:470 | Lower GWP)
Seer2 (Mode: cooling)
15.2 Btu/(W.h)

Matched systems

Certificates

24 verified catalog relationships.

Search AHRI
ENERGY STAR certified HP - Split System

AHRI 215756528

AHRI 215756528 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CBK47UHET-048-230-**.

ENERGY STAR certified HP - Split System

AHRI 215756533

AHRI 215756533 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CBK48MVT-048-230-**.

ENERGY STAR certified HP - Split System

AHRI 215756535

AHRI 215756535 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CBK48MVT-060-230-**.

ENERGY STAR certified HP - Split System

AHRI 215756545

AHRI 215756545 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CK40[C,U]T-49C-**+TDR.

ENERGY STAR certified HP - Split System

AHRI 215756576

AHRI 215756576 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CK40[C,U]T-49C-**+TDR.

ENERGY STAR certified HP - Split System

AHRI 215756585

AHRI 215756585 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CK40[C,U]T-49C-**+TDR.

ENERGY STAR certified HP - Split System

AHRI 215756702

AHRI 215756702 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CK40[C,U]T-60C-**+TDR.

ENERGY STAR certified HP - Split System

AHRI 215756707

AHRI 215756707 identifies a HP - Split System from Lennox with outdoor unit EL16KP1-048-230A** and indoor unit CK40[C,U]T-60C-**+TDR.
