Lennox Heat pump condensing unit EL22XPV-060-230A**

Lennox Lennox AHRI Outdoor - EL22XPV Variable-Capacity Heat Pump Heat pump condensing unit Repair, maintenance, and replacement planning

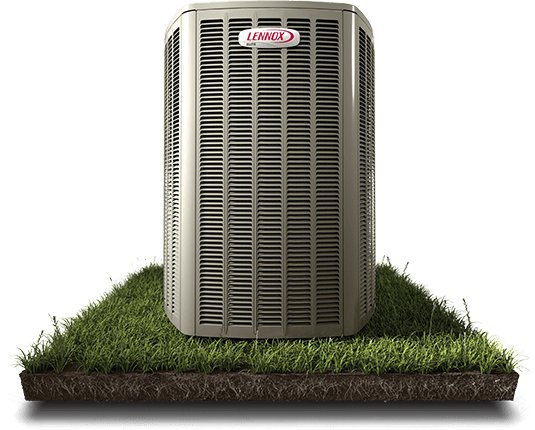

Lennox EL22XPV-060-230A** product image

Technical Specifications

Product Specs

  • AHRI unit role: Outdoor
  • AHRI model/pattern: EL22XPV-060-230A**
  • AHRI records represented: 30
  • AHRI equipment type: HP - Split System
  • AHRI refrigerant: R-410A
  • Verified catalog model: EL22XPV-060-230A**
  • Verified product family: EL22XPV Variable-Capacity Heat Pump
  • Verified catalog brand: Lennox
  • Verified model family: EL22XPV
  • AHRI model/pattern: EL22XPV-060-230A**
  • Nominal capacity: 5 ton
  • Nominal cooling capacity: 60,000 BTU nominal cooling capacity
  • Cooling efficiency: up to 22 SEER2
  • Heating efficiency: up to 9.5 HSPF2
  • Operation: variable-capacity
  • Refrigerant: R-410A
  • Sound rating: low sound levels with sound-dampening system
  • Warranty: 10-year limited compressor warranty and 5-year limited covered components warranty; extended coverage may be available with product registration
  • Official product page: https://www.lennox.com/residential/products/heating-cooling/heat-pumps/el22xpv

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
ENERGY STAR certified HP - Split System

AHRI 211465229

AHRI 211465229 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CBA38MV-060-230*+TDR.

ENERGY STAR certified HP - Split System

AHRI 211465247

AHRI 211465247 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit C35-60C+TDR+TXV.

ENERGY STAR certified HP - Split System

AHRI 211465257

AHRI 211465257 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit C35-60C+TDR+TXV.

ENERGY STAR certified HP - Split System

AHRI 211465306

AHRI 211465306 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CX35-60C+TDR.

ENERGY STAR certified HP - Split System

AHRI 211465316

AHRI 211465316 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CX35-60C+TDR.

ENERGY STAR certified HP - Split System

AHRI 211465320

AHRI 211465320 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CX35-60D+TDR.

ENERGY STAR certified HP - Split System

AHRI 211465322

AHRI 211465322 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CX35-60D+TDR.

ENERGY STAR certified HP - Split System

AHRI 211465323

AHRI 211465323 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CBA27UHE-060-230*+TDR.

ENERGY STAR certified HP - Split System

AHRI 211752855

AHRI 211752855 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CX35-50/60C+TDR.

ENERGY STAR certified HP - Split System

AHRI 211752862

AHRI 211752862 identifies a Mass Save qualified HP - Split System from Lennox with outdoor unit EL22XPV-060-230A** and indoor unit CX35-50/60C+TDR.

Loading more

Service planning

How GreenFlow handles EL22XPV-060-230A** requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
