Heat pump water heater

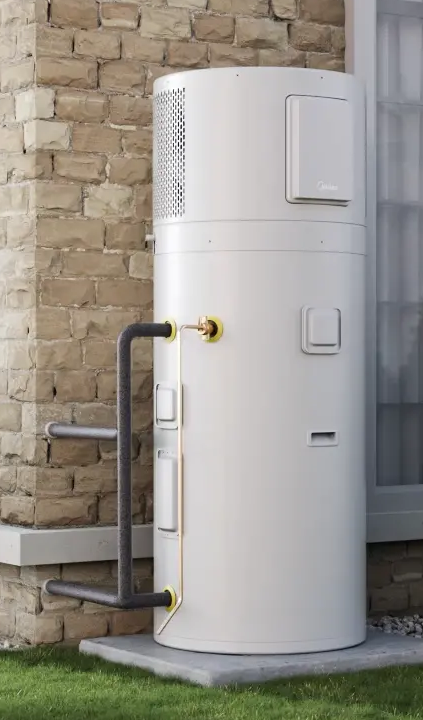

Midea MCHW-65VN3B
- Category
- Heat pump water heater
- Series
- Not assigned in catalog
- Model record
- Exact model
- Certifications
- 1 linked
Canonical product data
Specifications
Product specifications
- Product Type
- Hybrid/Electric Heat Pump
- Communication Hardware Architecture
- A - Built-in
- Compressor Lower Ambient Cutoff (Boundary: lower, Operating Transition: compressor_to_resistance_only, Temperature Role: ambient)
- 37.4 degF
- Compressor Upper Ambient Cutoff (Boundary: upper, Operating Transition: compressor_to_resistance_only, Temperature Role: ambient)
- 107.6 degF
- Connected Capable
- Yes
- Connects Using
- CTA-2045, Wi-Fi
- Demand Response Requires Broadband
- Yes
- Dr Protocol
- CTA-2045-B
- Fuel Type
- Electric
- Heat Pump Water Heater Form
- 240 Volt Integrated HPWH
- Load Up Functionality
- Advanced Load Up, Basic Load Up
- Market Availability
- Canada, United States
- Maximum Current
- 24 A
- Optional Operational Mode Functionality
- Set Point Adjustment
- Rated Electrical Input
- 5.5 kW
- Refrigerant Type
- R-134a
- Refrigerant With Gwp Claim
- R-134a (GWP:1430)
- Storage Volume
- 61 gal_source
- Supply Voltage
- 240 V
- Tank Diameter
- 21.8 in
- Tank Height
- 45.5 in
- Time Of Use Schedule Capable
- Yes
- Annual Electricity Consumption (Draw Pattern: High-Usage)
- 1234 kWh/year
- Draw Pattern
- High-Usage
- First Hour Hot Water Delivery (Delivery Period: first_hour, Draw Pattern: High-Usage)
- 80 gal_source
- Sound Pressure Level
- 49 dBA
- Uniform Energy Factor (Draw Pattern: High-Usage)
- 4
