Product Specs
- Brand: Payne

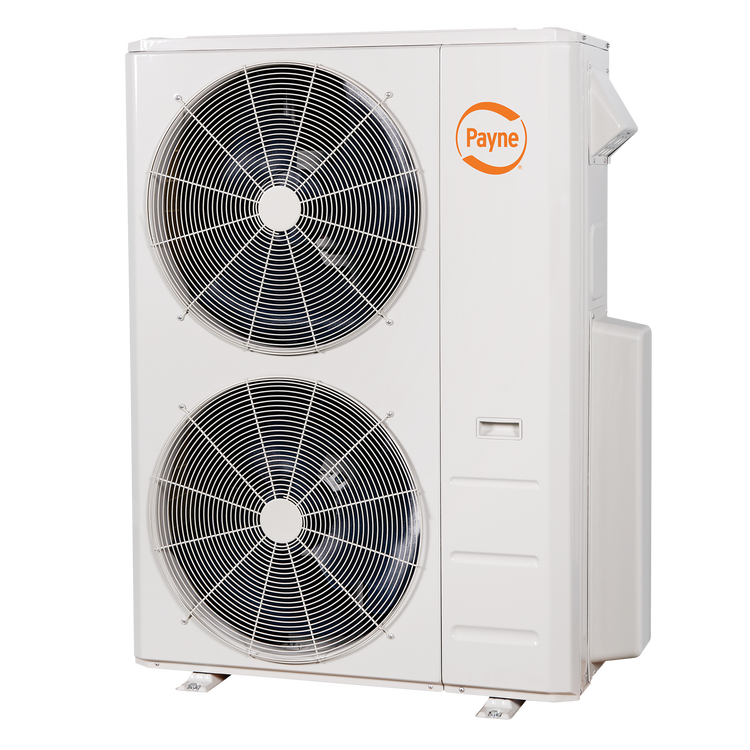

- Official model: 37MGHA

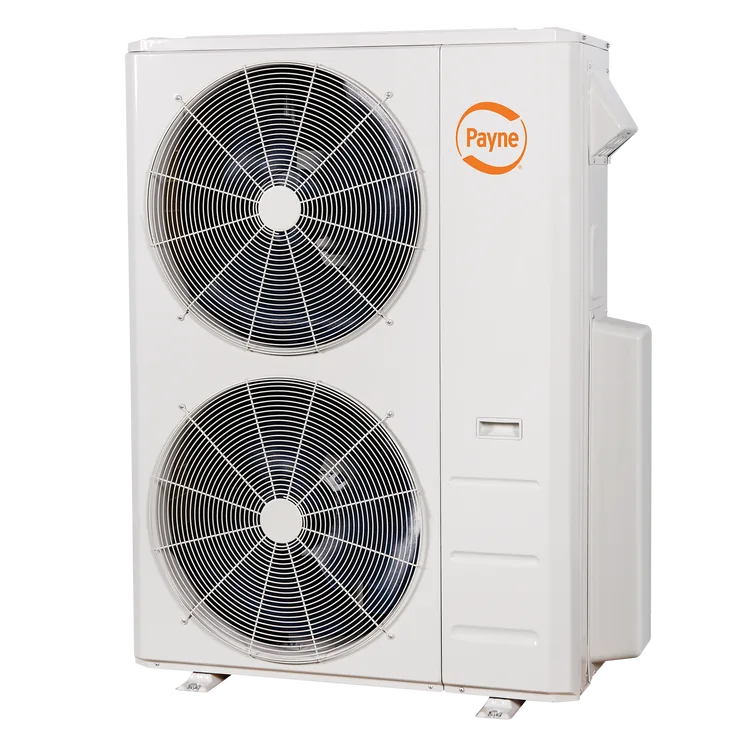

- Official product name: Multi-Zone High-Heat Heat Pump
- Product category: ductless-systems
- Connect 2 ~ 5 multiple style indoor units
- Built-in basepan heater
- Condenser high-temperature protection
- Uses R-454B refrigerant which continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant.
- Refrigerant leakage detection
- Quiet operation
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration 2
- Up to 25 SEER2
- Up to 11.3 HSPF2
- Outdoor sound: as low as 61 decibels 1
- Cooling operating range -22°~122° F (-30°~50° C)
- Heating operating range -22°~75° F (-30°~24° C)
- 116% Heating Capacity at 5° F (-15° C)
- Total piping length 197~262.5 ft. (40~100 m.)
- Sizes: 1.5-5 ton
- 208/230V
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
- Official source: Payne product page
- Model or series: 37MGHA Multi-Zone High-Heat Heat Pump
- Equipment type: Ductless HVAC
- Product group: Ductless and mini-split HVAC
- System role: Ductless or mini-split system equipment
- Application: Residential, light-commercial, or zone-control comfort applications
- Compatibility check: Match with compatible indoor unit, coil or air handler, controls, refrigerant, voltage, and capacity.
- Verified source: payne.com
