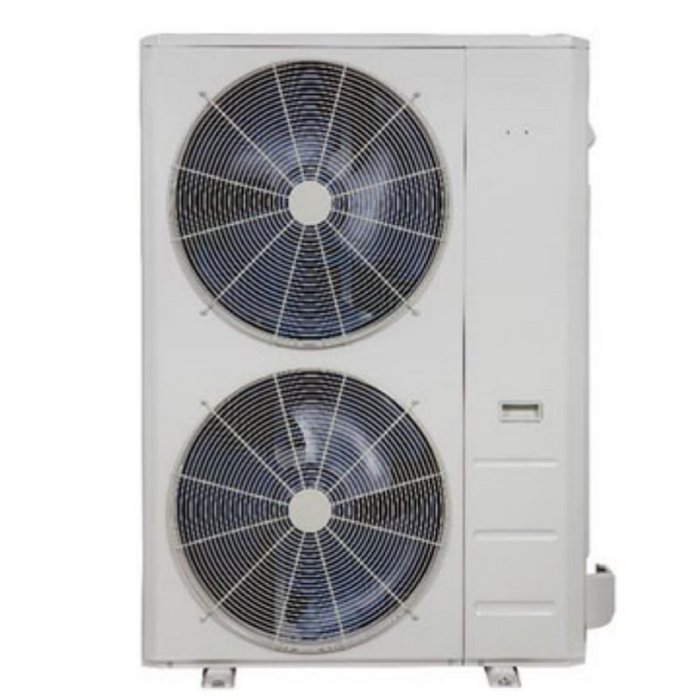

Payne 38MGRBQ36DA3

Request Service Equipment Quote

Category: Air-source heat pump
Series: 38MG-series
Model record: Exact model
Certifications: 3 linked

Canonical product data

Specifications

Product Type: HP - Mini or Multi Split
Compressor Staging: Continuously variable
Connected Capable: No
Cooling Capacity (Mode: cooling): 36000 Btu/h
Eer2 (Mode: cooling): 11.7 Btu/(W.h)
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 17 degF): 26800 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 47 degF): 37000 Btu/h
Heating Capacity (Mode: heating, Outdoor Dry Bulb: 5 degF): 25200 Btu/h
Heating Cop (Mode: heating, Outdoor Dry Bulb: 5 degF): 1.8
Hspf2 (Mode: heating): 9.5 Btu/(W.h)
Refrigerant With Gwp Claim: R-410A (GWP:2088)
Seer2 (Mode: cooling): 23.9 Btu/(W.h)
