Payne Heat pump component 40MBCQ09---3

Schedule Service Check Availability
Payne Payne AHRI Indoor - 40MBCQ Heat pump component Repair, maintenance, and replacement planning

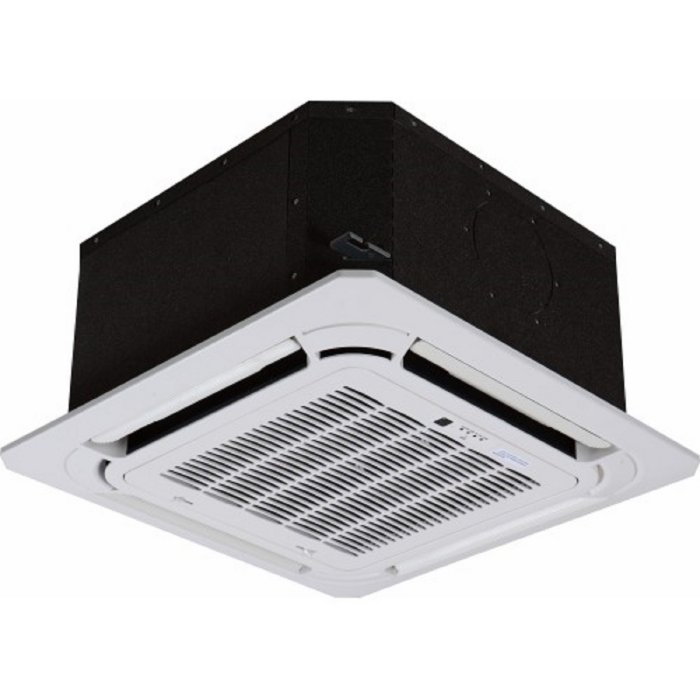

Payne 40MBCQ09---3 product image

Technical Specifications

Product Specs

  • AHRI unit role: Indoor
  • AHRI model/pattern: 40MBCQ09---3
  • AHRI records represented: 1
  • AHRI equipment type: HP - Mini or Multi Split
  • AHRI refrigerant: R-410A
  • Verified catalog model: 40MBCQ09---3
  • Verified product family: 40MBCQ
  • Verified catalog brand: Carrier, Bryant, Payne
  • Catalog Model: 40MBCQ09---3
  • Manufacturer Number: 40MBCQ09---3
  • Catalog SKU: 1623017896731103
  • Catalog Brand: Carrier, Bryant, Payne
  • Product Family: 40MBCQ
  • Tonnage: 0.75
  • Refrigerant: R-410A
  • Approvals: ETL Listed
  • Blower Motor HP: 61/1000
  • Blower Motor RPM: 960
  • Blower Motor Speeds: 3
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Motor Watts: 45
  • Brand: Carrier, Bryant, Payne
  • CFM: 260-380
  • Color: White
  • Cooling Capacity: 2,850-11,100
  • Cooling Rated Capacity Btu/h: 9000
  • Country Of Origin: CHN
  • Cubic Measurement: 2.984
  • Cycle/Hertz: 60 Hz
  • Dimensional Weight: 54
  • Drain Connection Size: 1"
  • EER: 13
  • Energy Star Rated: NO
  • Evaporator Coil Fins Per Inch (FPI): 19
  • Heating Capacity: 9,800-11,800
  • Height: 10.24
  • Length: 22.44
  • Liquid Line Fitting Type: Flare
  • Liquid Line Size (OD): 1/4"
  • Mounting Type: Ceiling Cassette
  • Multi Zone: YES
  • OPT Code: 1P40MBCQ09---3
  • Phase: Single
  • Prop 65: YES
  • Remote Control Included: YES
  • SEER: 20
  • Sound Level (dBA): 34-44
  • Suction Line Fitting Type: Flare
  • Suction Line Size (OD): 3/8"
  • Tier: Performance
  • UOM: EA
  • UPC: See Optical
  • Voltage: 208-230 VAC
  • Weight: 35.27
  • Width: 22.44

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
ENERGY STAR certified HP - Mini or Multi Split

AHRI 206350349

AHRI 206350349 identifies a Mass Save qualified HP - Mini or Multi Split from Payne with outdoor unit 38MARBQ09AA3 and indoor unit 40MBCQ09---3.

Service planning

How GreenFlow handles 40MBCQ09---3 requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
