Payne Evaporator coil CAAVU Uncased Vertical A-Shaped Evaporator Coil

Schedule Service Check Availability
Payne Residential HVAC Evaporator coil Repair, maintenance, and replacement planning

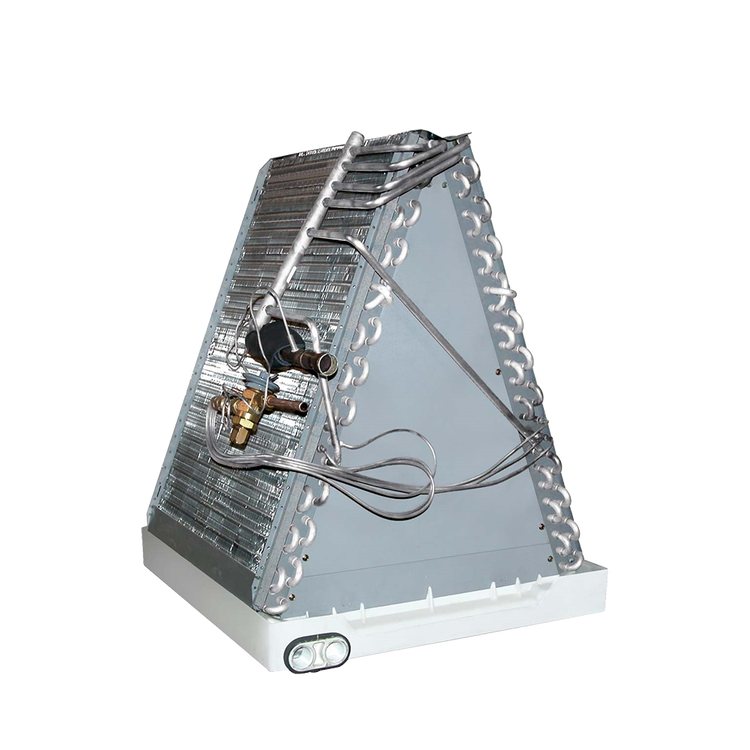

Payne CAAVU Uncased Vertical A-Shaped Evaporator Coil product image

Technical Specifications

Product Specs

  • Brand: Payne
  • Official model: CAAVU
  • Official product name: Uncased Vertical A-Shaped Evaporator Coil
  • Product category: evaporator-coils
  • Evaporator Coils Type = Uncased A-Shaped
  • Evaporator Coils Application = Upflow / Downflow Application
  • Includes factory-installed refrigerant leak dissipation systems to meet new UL requirements and to show our commitment to safety.
  • Cased A coil design for efficient heat transfer in a compact size
  • Efficiency-optimizing Thermostatic Expansion Valve (TXV)
  • 10-year parts limited warranty*
  • Vertical upflow/downflow design
  • Galvanized, fully insulated steel cabinet
  • Corrosion-resistant all-aluminum coil
  • Corrosion-free sloped drain pan design helps reduce mold and bacteria buildup
  • Capacity: 2 - 5 tons
  • Official source: Payne product page
  • Model or series: CAAVU Uncased Vertical A-Shaped Evaporator Coil
  • Equipment type: Evaporator coil
  • Product group: Residential HVAC
  • System role: Indoor evaporator coil for a matched split HVAC system
  • Application: Residential, light-commercial, or managed-property comfort applications
  • Compatibility check: Match with compatible outdoor equipment, controls, airflow, voltage, and capacity before service or replacement.
  • Verified source: payne.com

Useful troubleshooting details

  • Confirm the exact CAAVU Evaporator coil model number, serial number, capacity, voltage, refrigerant or fuel type, controls, and matched equipment.
  • Share current symptoms, alerts or error codes, recent maintenance, access notes, and whether the issue is urgent or planned.
  • For replacement planning, note comfort goals, existing equipment age, and any heat-pump, electrification, or rebate-related questions.

Service planning

How GreenFlow handles CAAVU Uncased Vertical A-Shaped Evaporator Coil requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
