Payne Evaporator coil CNPVU Uncased N-Shaped Evaporator Coil

Schedule Service Check Availability
Payne Residential HVAC Evaporator coil Repair, maintenance, and replacement planning

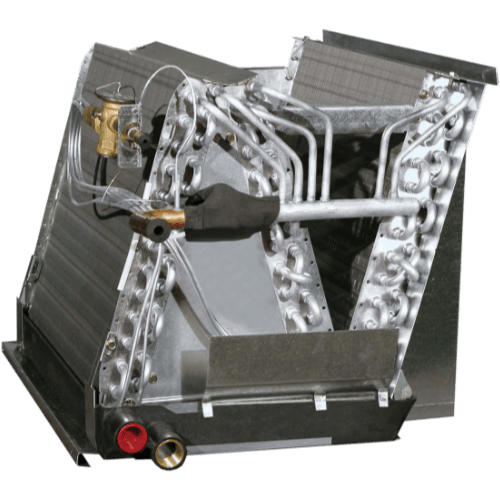

Payne CNPVU Uncased N-Shaped Evaporator Coil product image

Technical Specifications

Product Specs

  • Brand: Payne
  • Official model: CNPVU
  • Official product name: Uncased N-Shaped Evaporator Coil
  • Equipment type: evaporator coil
  • Product category: evaporator coils
  • Coil type: uncased N coil
  • Application: vertical upflow/downflow installations
  • Coil material: corrosion-resistant all-aluminum coil
  • Metering: thermostatic expansion valve (TXV) refrigerant management
  • Drain pan: corrosion-free sloped drain pan helps reduce mold and bacteria buildup
  • Refrigerant family: non-ozone-depleting Puron/R-410A product family documentation
  • Official category source: Payne evaporator coils product listing includes CNPVU
  • Technical source: CNPVP/CNRVP/CNPVU/CNRVU evaporator coil product data documentation
  • Model or series: CNPVU Uncased N-Shaped Evaporator Coil
  • Product group: Residential HVAC
  • System role: Indoor evaporator coil for a matched split HVAC system
  • Compatibility check: Match with compatible outdoor equipment, controls, airflow, voltage, and capacity before service or replacement.
  • Verified source: payne.com

Useful troubleshooting details

  • Confirm the exact CNPVU Evaporator coil model number, serial number, capacity, voltage, refrigerant or fuel type, controls, and matched equipment.
  • Share current symptoms, alerts or error codes, recent maintenance, access notes, and whether the issue is urgent or planned.
  • For replacement planning, note comfort goals, existing equipment age, and any heat-pump, electrification, or rebate-related questions.

Service planning

How GreenFlow handles CNPVU Uncased N-Shaped Evaporator Coil requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
