Payne Gas furnace PG92MSAA36040A**

Schedule Service Check Availability
Payne Payne AHRI Furnace - PG96MSA Gas furnace Repair, maintenance, and replacement planning

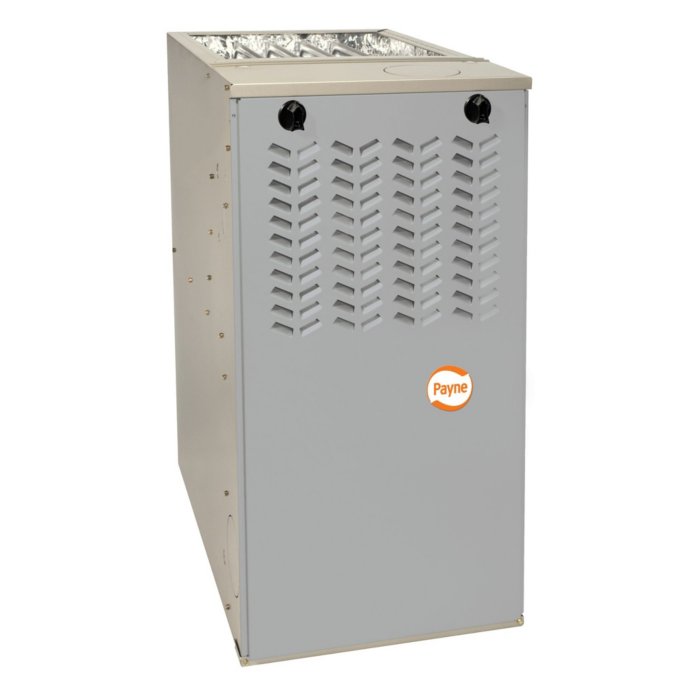

Payne PG92MSAA36040A** product image

Technical Specifications

Product Specs

  • AHRI unit role: Furnace
  • AHRI model/pattern: PG92MSAA36040A**
  • AHRI records represented: 10
  • AHRI equipment type: Central HP
  • AHRI tonnage: 1.8833333333333333
  • AHRI refrigerant: R-454B
  • Verified catalog model: PG92MSAA36040A
  • Verified product family: PG96MSA
  • Verified catalog brand: Payne
  • Catalog Model: PG92MSAA36040A
  • Manufacturer Number: PG92MSAA36040A
  • Catalog SKU: 1604089127828221
  • Catalog Brand: Payne
  • Product Family: PG96MSA
  • AFUE: 92.1
  • Air Flow Direction: Multi-Position
  • BTU Input: 40,000
  • BTU Output: 37,000
  • Blower Motor HP: 1/2
  • Blower Motor Speeds: 18
  • Blower Motor Type: ECM (Electronically Commutated Motor)
  • Blower Wheel Diameter: 11"
  • Blower Wheel Width: 7
  • Brand: Payne
  • CFM Heating: 760
  • Cabinet Width: 17.5
  • Color: Gray
  • Country Of Origin: USA
  • Cycle/Hertz: 50/60 Hz
  • Energy Star Rated: YES
  • FER Compliant: YES
  • Filter Size: 16" x 25" x 3/4
  • Fuel Type: Natural Gas or LP
  • Full Load Amps: 6.7
  • Furnace Type: Gas
  • Gas Connection Size: 1/2"
  • Gas Connection Type: NPT
  • Height: 35
  • Ignition Type: Hot Surface (HSI)
  • Includes Filter Rack: NO
  • Length: 29.5
  • Maximum Overcurrent Protection (MOCP): 15
  • OPT Code: 1PPG92MSAA36040A
  • Phase: Single
  • Prop 65: YES
  • Rated Current Amps (RCA): 8.8
  • Stages Heating: 1
  • UPC: See Optical
  • Voltage: 115 VAC
  • Weight: 117.5
  • Width: 14.2

Useful troubleshooting details

  • Confirm the installed model and serial number, matched indoor or outdoor equipment, voltage, refrigerant, controls, and AHRI certificate before service or replacement planning.
  • Use the linked AHRI certificates to verify matched-system combinations, rebate conversations, and equipment eligibility before quoting replacement work.
  • Collect photos of the nameplate, equipment access, recent fault history, and comfort symptoms before dispatch or proposal planning.

Certification match

AHRI certificates

View All
Eligible Central HP <5.4 tons

AHRI 217632968

AHRI 217632968 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+TIC2025-0016 and indoor unit CAA**2417AM*.
Eligible Central HP <5.4 tons

AHRI 217633148

AHRI 217633148 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+TIC2025-0016 and indoor unit CAA**2517AM*.
Eligible Central HP <5.4 tons

AHRI 217633399

AHRI 217633399 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+TIC2025-0016 and indoor unit CAA**3017AM*.
Eligible Central HP <5.4 tons

AHRI 217633579

AHRI 217633579 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+TIC2025-0016 and indoor unit CAA**3617AM*.
Eligible Central HP <5.4 tons

AHRI 217633759

AHRI 217633759 identifies a Mass Save qualified Central HP <5.4 tons from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+TIC2025-0016 and indoor unit CAA**3717AM*.
ENERGY STAR certified HP - Split System

AHRI 218476076

AHRI 218476076 identifies a Mass Save qualified HP - Split System from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+KSAIC0701230 and indoor unit CAA**2417AM*.
ENERGY STAR certified HP - Split System

AHRI 218476146

AHRI 218476146 identifies a Mass Save qualified HP - Split System from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+KSAIC0701230 and indoor unit CAA**2517AM*.
ENERGY STAR certified HP - Split System

AHRI 218476243

AHRI 218476243 identifies a Mass Save qualified HP - Split System from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+KSAIC0701230 and indoor unit CAA**3017AM*.
ENERGY STAR certified HP - Split System

AHRI 218476315

AHRI 218476315 identifies a Mass Save qualified HP - Split System from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+KSAIC0701230 and indoor unit CAA**3617AM*.
ENERGY STAR certified HP - Split System

AHRI 218476386

AHRI 218476386 identifies a Mass Save qualified HP - Split System from PAYNE HEATING AND COOLING with outdoor unit 37MUHAQ24AA3+KSAIC0701230 and indoor unit CAA**3717AM*.

Service planning

How GreenFlow handles PG92MSAA36040A** requests

1

Identify the equipment

Confirm the model or series name, serial number if available, photos, and whether the unit is roof, exterior, basement, or mechanical-room equipment.

2

Describe the service issue

Share no heat, no cooling, weak airflow, error codes, alarms, leaks, noise, control problems, or comfort complaints.

3

Review access and history

Include access notes, tenant or business-hour constraints, filter status, recent repairs, and maintenance records when available.

4

Plan the next step

GreenFlow can route the request for diagnostics, repair planning, maintenance, replacement scope, or related system upgrades.
